Small Bow Thruster
A bow thruster is a transversal propulsion device built into or mounted to the bow of a ship or boat, to make it more maneuverable. Bow thrusters make docking easier, since they allow the captain to turn the vessel to port or starboard side, without using the main propulsion mechanism which requires some forward motion for turning. Large ships might have multiple bow thrusters. Our bow thruster can be driven by electric motor, diesel engine or hydraulic motor. They are fallen into fixed pitch propeller bow thruster and controllable pitch propeller bow thruster. We can supply the certificate such as SSA, ABS, BV, DNV, NK, KR, and GL according to customer¡¯s request. If you are interested in our products, please be free to contact us. We are very glad to serve you.
Features:
1. Type: FPP bow thruster, CPP bow thruster
2. Driving force: electric motor, diesel engine, hydraulic motor
3. Certificate approved: ABS, CCS, BV, DNV, GL, KR, NK, RINA, etc.
4. Application: engineering vessel, RORO vessel, container tanker, ferry, tugboat, yacht, etc.

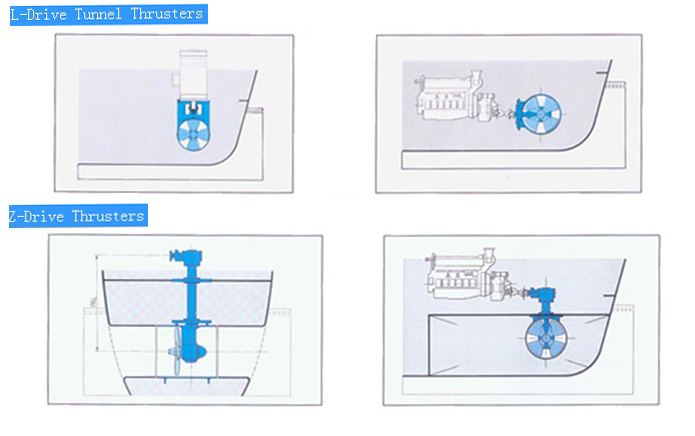

Drive types:
Specification:
Model |
Motor power (KW) |
Frequency (Hz) |
Input speed (rpm) |
A |
B |
C |
D |
E |
F |
FPP or CPP
|
BT50 |
60/75 |
50/60 |
1450/1755 |
545 |
525 |
600 |
500 |
345 |
551 |
FPP
|
BT60 |
100/120 |
50/60 |
1450/1755 |
651 |
621 |
800 |
600 |
400 |
623 |
|
BT70 |
140/170 |
50/60 |
1450/1755 |
751 |
721 |
800 |
700 |
450 |
650 |
|
BT80 |
220/260 |
50/60 |
1450/1755 |
862 |
822 |
920 |
800 |
500 |
710 |
|
BT90 |
220/260 |
50/60 |
1450/1755 |
962 |
922 |
920 |
900 |
550 |
800 |
|
BT110 |
345/400 |
50/60 |
1450/1760 |
1158 |
1126 |
1200 |
1100 |
650 |
862 |
FPP/CPP
|
BT130 |
450/500 |
50/60 |
1450/1760 |
1360 |
1328 |
1265 |
1300 |
780 |
932 |
|
BT150 |
560/630 |
50/60 |
1450/1760 |
1570 |
1534 |
1400 |
1500 |
880 |
1040 |
|
BT165 |
680/780 |
50/60 |
1450/1770 |
1732 |
1692 |
1611 |
1650 |
950 |
1146 |
|
BT180 |
880/930 |
50/60 |
1450/1770 |
1882 |
1842 |
1690 |
1800 |
1040 |
1220 |
|
BT200 |
1150/1000 |
50/60 |
1450/1180 |
2082 |
2038 |
1890 |
2000 |
1160 |
1327 |
|
BT250 |
1800/1700 |
50/60 |
975/880 |
2620 |
2560 |
2280 |
2500 |
1460 |
1780 |
|
BT275 |
2300/200 |
50/60 |
975/880 |
2890 |
2810 |
2335 |
2750 |
1635 |
1911 |
|
BT300 |
2800/3050 |
50/60 |
735/880 |
3150 |
3060 |
2500 |
3000 |
1810 |
2180 |
Product picture:
Marine Small Bow Thruster
