Marine Tunnel Thruster
[Search Related Products]Marine Tunnel Thruster
According to the propeller type, our marine tunnel thrusters are fallen into two types - fixed pitch propeller tunnel thruster (FPP type) and controllable pitch propeller tunnel thruster (CPP type). The tunnel thruster is widely used in various kinds of ships and can be driven by diesel engine or electric-motor. It can be installed vertically or horizontally; and is designed based on the concept of reliability, durability, high efficiency and easy maintenance. All of our marine tunnel thrusters are approved by CCS, BV, DNV, ABS, NK, KR, GL, etc. If you are interested in our products, please be free to contact us, we will answer you as soon as possible.
Specification:
Model (FPP) |
TT500 |
TT600 |
TT700 |
TT800 |
TT900 |
TT1000 |
TT1100 |
TT1300 |
TT1480 |
TT1650 |
Max Input Power (KW) |
63/72 |
90/105 |
135/165 |
180/190 |
200/235 |
280/290 |
315/340 |
445/480 |
560/620 |
680/730 |
Reduction Ratio |
1.52 |
2.071 |
2.07 |
2.417 |
2.42 |
3.09 |
3.09 |
3.78 |
4.364 |
4.73 |
Max Input Torque (N.m) |
600 |
900 |
900 |
1400 |
1400 |
2100 |
2100 |
3000 |
3800 |
4500 |
Max Input speed (r/min) |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
Propeller Speed (r/min) |
954/1151 |
700/845 |
700/845 |
600/724 |
600/724 |
600/724 |
469.1/566 |
384/463 |
332.3/401 |
307/370 |
Propeller Dia. (mm) |
500 |
600 |
700 |
800 |
900 |
900 |
1100 |
1300 |
1480 |
1650 |
Max thrust (KN) |
10/11.2 |
14.5/16.3 |
20/24.8 |
29.5/30.5 |
31/35.4 |
43/45.2 |
49/53.8 |
67/73 |
88/95 |
105/110 |
Cylinder standard length (mm) |
600 |
800 |
800 |
920 |
920 |
1045 |
1045 |
1190 |
1320 |
1446 |
Cylinder standard inner Dia.(mm) |
515 |
615 |
715 |
818 |
918 |
1020 |
1120 |
1328 |
1510 |
1680 |
Model (CPP) |
TT1000 |
TT1100 |
TT1300 |
TT1650 |
TT2000 |
TT2400 |
TT2800 |
Max input power (KW) |
280 |
315/335 |
445/480 |
680/730 |
1050/900 |
1580/1720 |
2000/1910 |
Reduction ratio |
3.09 |
3.09 |
3.78 |
4.72 |
4.82 |
4.645 |
4.395 |
Max input speed (R/min) |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1190 |
980/1190 |
980/880 |
Propeller speed (r/min) |
469.1/560 |
469/566 |
384/463 |
307/370 |
301/247 |
211/256 |
223/200 |
Propeller Dia.(mm) |
1000 |
1100 |
1300 |
1650 |
2000 |
2400 |
2800 |
Max Thrust (KN) |
43 |
46/47 |
66/67 |
97/105 |
155/144 |
239/242 |
298/297 |
Cylinder standard length(mm) |
1045 |
1045 |
1190 |
1446 |
1680 |
1990 |
2280 |
Cylinder standard inner Dia.(mm) |
1020 |
1120 |
1328 |
1680 |
2030 |
2430 |
2836 |
Hydraulic System for Controllable Pitch Bow Thruster
Diameter |
Period of changing pitch |
Power of oil pump(KW) |
Capacity(L) |
|
Hydraulic unit |
The whole system |
|||
1100 |
10 |
1.5 |
200 |
335 |
1300 |
12 |
1.5 |
200 |
385 |
1650 |
16 |
3 |
230 |
555 |
2000 |
20 |
5.5 |
230 |
650 |
2400 |
24 |
5.5 |
230 |
1300 |
2800 |
32 |
6.8 |
230 |
1500 |
Note: You are welcomed to send us your drawing or sample to help us design and manufacture the product you want.

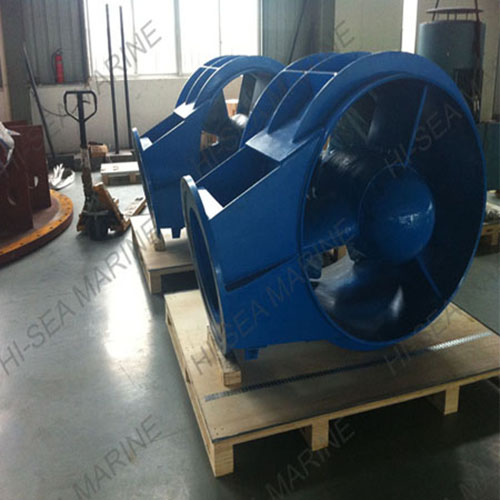

Product picture:
Ship Tunnel Thruster
