Lateral Thruster With Contra-rotating Propellers

Lateral Thruster with Contra-Rotating Propellers

This product is lateral thruster with contra-rotating propellers. Using contra-rotating technology in the lateral thruster will realize the shortest propeller diameter among the same power thruster. Lateral thrusters have the strongest propulsive force among normal thruster with the same diameter. At the same time, propulsive force on the left side is about same to the right side. This innovative technology provides brand new product series for the choice in lateral thruster of ship design. With high-power, this lateral thruster is especially suitable for ocean engineering ships with DP (dynamic positioning) requirement.

Product features:

1. Material: alloy

2. Engine: 2 stroke

3. Engine type: inboard

4. Application: inland and coastal boats

5. Certification: CCS, ABS, BV, RINS, NK, GL, etc.

Specification:

Model

Power Rating

(KW/HP)

Maximum input speed

(r/min)

Maximum input torque

(N.m)

Maximum lateral thrust

(KN)

Standard length of cylinder

(mm)

Dia of propeller

(mm)

Dia of propeller for normal thruster

(mm)

RF-FPCTT200

200/270

1500

1273

40

1350

650

970

RF-FPCTT400

400/560

1500

2550

80

1500

930

1300

RF-FPCTT600

600/800

1500

3820

130

1700

1100

1700

RF-FPCTT800

800/1100

1500

5093

160

1900

1450

1900

RF-FPCTT1000

1000/1350

1500

6367

200

2000

1500

2000

RF-FPCTT1200

1200/1600

1500

7640

220

2200

1700

2200

Product displaying:

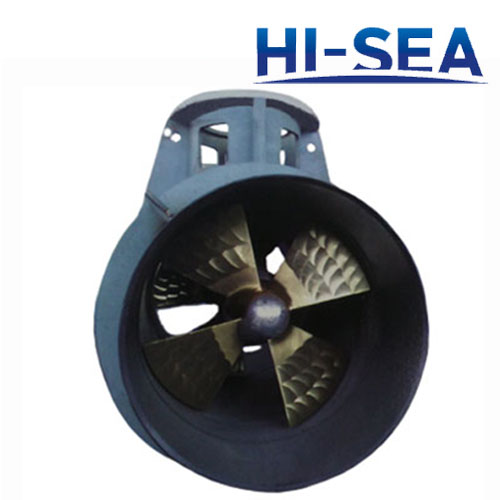

Lateral Thruster With Contra-rotating Propellers

Contra-Rotating Propeller Tunnel Thruster
