Tanker Bow Thruster
[Search Related Products]Tanker Bow Thruster
A bow thruster provide a transverse thrust force to ensure the best performance under all sorts of weather and water conditions, the bow thruster able to provide a thrust force which is sufficient for the boat. Designed with tough and rational structure, the bow thruster has superior performance. It can be used for tankers. You can choose the model freely from the following table. Besides, you are welcomed to supply the drawing or sample to help us design and manufacture the product you want.
Features:
1. Propeller type: CPP
2. Propeller Diameter: 1100mm-2800mm.
3. Driving type: Electric motor, diesel engine or hydraulic motor drive.
4. Power: 280kw~2000kw
5. Certificates: CCS, BV, ABS, LR, NK, DNV, GL, RINA, etc.
Advantages:
1. Superior performance
2. Less noise and vibration
3. Easy installation and periodical inspection
Drawing and specification:

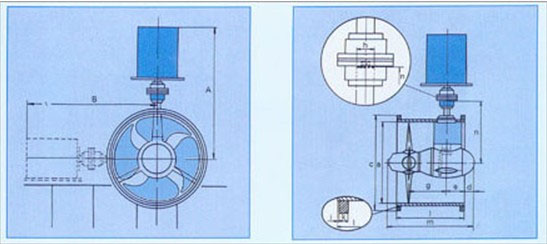

Drawing of Tanker Bow Thruster
Controllable pitch propeller tunnel thruster parameters |
|||||||
Model |
CP-1000 |
CP-1100 |
CP-1300 |
CP-1650 |
CP-2000 |
CP-2400 |
CP-2800 |
Max input power |
280 |
315/335 |
445/480 |
680/730 |
1050/900 |
1580/1720 |
2000/1910 |
Ratio |
3.09 |
3.09 |
3.78 |
4.72 |
4.82 |
4.645 |
4.395 |
Max input speed |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1190 |
980/1190 |
980/880 |
Propeller speed |
469.1/560 |
469/566 |
384/463 |
307/370 |
301/247 |
211/256 |
223/200 |
Propeller diameter |
1000 |
1100 |
1300 |
1650 |
2000 |
2400 |
2800 |
Max thrust |
43 |
46/47 |
66/67 |
97/105 |
155/144 |
239/242 |
298/297 |
Cylinder length |
1045 |
1045 |
1190 |
1446 |
1680 |
1990 |
2280 |
Cylinder internal |
1020 |
1120 |
1328 |
1680 |
2030 |
2430 |
2836 |
Propeller Diameter |
a |
c |
d |
e |
g |
h |
i |
t |
k |
l |
m |
n |
1100 |
1120 |
1330 |
175 |
340 |
505 |
70 |
50 |
15 |
30 |
1045 |
1283 |
842 |
1300 |
1328 |
1538 |
190 |
345 |
615 |
80 |
50 |
15 |
30 |
1190 |
1470 |
933 |
1650 |
1680 |
1910 |
260 |
390 |
730 |
90 |
50 |
15 |
50 |
1390 |
1797 |
1145 |
2000 |
2026 |
2270 |
340 |
420 |
900 |
110 |
50 |
22 |
50 |
1680 |
2195 |
1395 |
2400 |
2430 |
2682 |
310 |
500 |
1080 |
140 |
50 |
26 |
50 |
1990 |
2532 |
1647 |
2800 |
2836 |
3206 |
395 |
620 |
1210 |
150 |
60 |
35 |
60 |
2280 |
2990 |
1930 |
Product displaying:

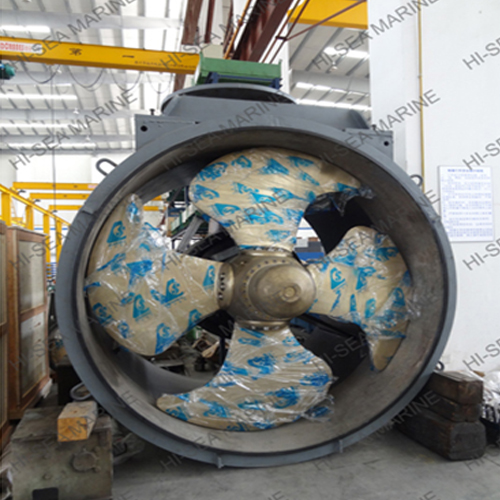

Bow Thruster for Tanker
