Transverse Thruster
[Search Related Products]Transverse Thruster
Transverse thruster is suitable for various kinds of vessels. It can be driven by diesel engine, electrical motor and hydraulic motor. According to the pitch of propeller, it can be divided into two kinds: CPP type and FPP type. According to installation way, it can be divided into vertical installation type and horizontal installation type. On the basic of design concept of reliability, endurance, high efficiency and easy-maintenance, our transverse thrusters have the following features:
Product features:
1. Optimized combination of propeller diameter and rotate speed, improving propulsion efficiency (with a smaller diameter in the same thrust force) and the utilization rate of cabin
2. Skew blade and large disk ratio, reducing vibration and improving cavitations performance
3. Gear and bearing with high strength and long longevity, and dipped into oil to get better lubrication and cooling effect, improving the reliability of transverse thruster
4. Optimized underwater structure, rational construction and high reliability
5. Good stern shaft sealing, meeting the strict requirements of anti-pollution law of sea and ocean environment
6. Certificates approved: ABS, BV, CCS, DNV, KR, GL, NK, RINA, etc.
Technique data:
Model |
Max Power |
Propeller diameter |
Motor Hz |
Output rpm |
Tunnel length |
Tunnel thickness |
Propeller type |
MTT70 |
120 |
700 |
50 |
781 |
1000 |
10 |
FPP |
60 |
937 |
||||||
MTT90 |
230 |
900 |
50 |
657 |
1200 |
10 |
FPP |
60 |
789 |
||||||
MTT110 |
335 |
1100 |
50 |
465 |
1400 |
15 |
FPP, CPP |
60 |
556 |
||||||
MTT130 |
480 |
1300 |
50 |
390 |
1500 |
15 |
FPP, CPP |
60 |
467 |
||||||
MTT165 |
770 |
1650 |
50 |
312 |
1820 |
15 |
FPP, CPP |
60 |
374 |
||||||
MTT185 |
990 |
1850 |
50 |
271 |
2050 |
20 |
FPP, CPP |
60 |
325 |
||||||
MTT200 |
1180 |
2000 |
50 |
298 |
2150 |
20 |
FPP, CPP |
60 |
236 |
||||||
MTT225 |
1430 |
2250 |
50 |
219 |
2350 |
25 |
FPP, CPP |
60 |
267 |
||||||
MTT245 |
1980 |
2450 |
50 |
206 |
2650 |
25 |
FPP, CPP |
60 |
245 |
||||||
MTT265 |
2250 |
2650 |
50 |
209 |
2900 |
25 |
FPP, CPP |
60 |
199 |
||||||
MTT285 |
2680 |
2850 |
50 |
216 |
3100 |
30 |
CPP |
60 |
193 |
||||||
MTT300 |
3000 |
3000 |
50 |
164 |
3300 |
30 |
CPP |
60 |
197 |

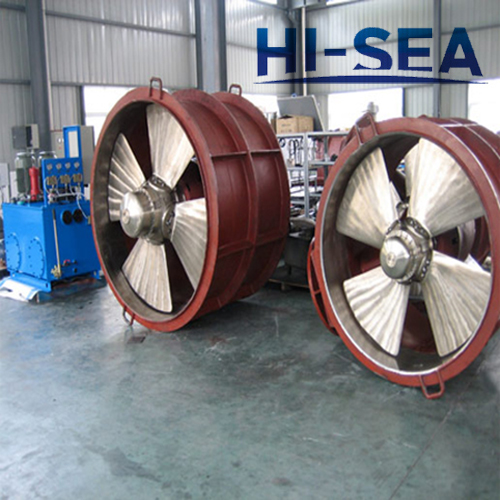

Picture showing:
Ship Transverse Thruster
