Tugboat Bow Thruster
Tugboat works always with bow thruster to get better operation. It can be installed vertically or horizontally. It is designed based on the concept of reliability, durability, high efficiency and easy maintenance. Tugboat bow thruster is used for drag no self-propelled ship, boat etc. assisting big vessels out of port or pier. 160KW, 200KW, 250KW, 300KW, 350KW, 400KW, 450KW, 480KW are the often used power. 600KW, 800KW, 1000KW etc. are only for big vessels.
Features:
1. Easy installation and maintenance
2. Low noise emission
3. Reliability, durability and efficiency
4. Certificates: ABS, BV, CCS, DNV, NK, KR, GL, RINA, etc.
5. OEM service available
Specification:
Model |
FP-500 |
FP-600 |
FP-700 |
FP-800 |
FP-900 |
FP-1000 |
FP-1100 |
FP-1300 |
FP-1480 |
|
Max input power |
63/72 |
90/105 |
135/165 |
180/190 |
200/235 |
280/290 |
315/340 |
445/480 |
560/620 |
|
Ratio |
1.52 |
2.071 |
2.1 |
2.417 |
2.42 |
3.09 |
3.09 |
3.78 |
4.364 |
|
Max input torque |
600 |
900 |
900 |
1400 |
1400 |
2100 |
2100 |
3000 |
3800 |
|
Max input speed |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
|
Propeller speed |
954/1151 |
700/845 |
700/845 |
600/724 |
600/724 |
469.1/566 |
469.1/566 |
384/463 |
332.3/401 |
|
Propeller diameter |
500 |
600 |
700 |
800 |
900 |
1000 |
1100 |
1300 |
1480 |
|
Max thrust |
10/11.2 |
14.5/16.3 |
20/24.8 |
29.5/30.5 |
31/35.4 |
43/45.2 |
49/53.8 |
67/73 |
88/95 |
|
Cylinder length |
600 |
800 |
800 |
920 |
920 |
1045 |
1045 |
1190 |
1320 |
|
Cylinder internal |
515 |
615 |
715 |
818 |
918 |
1020 |
1120 |
1328 |
1510 |
|

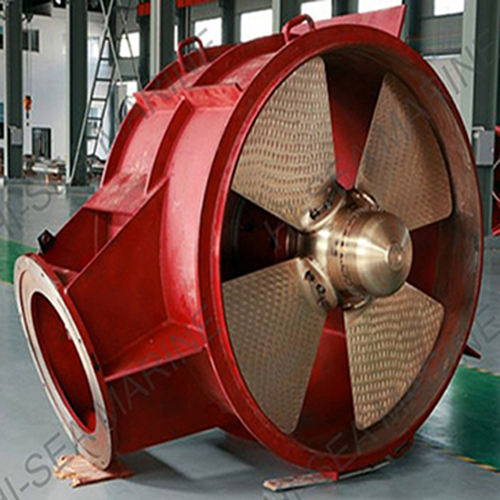

Picture showing:
Marine Tugboat Bow Thruster
