Hydraulic Bow Thruster
[Search Related Products]Hydraulic Bow Thruster
This product is the bow thruster driven by hydraulic motor. It gets power supply from hydraulic pack and generates thruster through propeller rotation. Compare with electric motor bow thruster, hydraulic bow thruster has a simple structure which can save a lot of space. Approved by certificates like CCS, BV, DNV, ABS, NK, KR, etc, this hydraulic is widely used to improve the maneuverability of ships when docking or steering.
Main advantages:
1. Skew and large area ratio blade leading to low vibration and better cavitations performance
2. High strength and long life gears and bearings, and good lubrication and cooling, improving whole machine¡¯s reliability
3. Optimal design for underwater mechanism, compact structure, easy installation and maintenance
4. Better stern seal to ensure tightness and meet requirements of increasingly strict marine pollution prevention

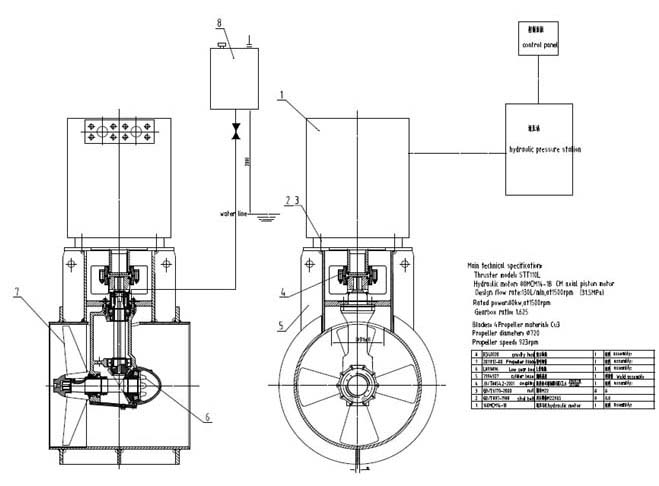

Hydraulic Bow Thruster Installation System Drawing
Specification:
Model |
Propeller diameter (mm) |
Power (KW) |
Max thrust (KN) |
Propeller type |
FP-600 |
600 |
20~75 |
16 |
FPP |
FP-900 |
900 |
75~210 |
33 |
FPP |
FP-1100 |
1100 |
200~330 |
46 |
FPP,CPP |
FP-1300 |
1300 |
310~470 |
66 |
FPP,CPP |
FP-1650 |
1650 |
450~760 |
108 |
FPP,CPP |
FP-1850 |
1850 |
720~1020 |
132 |
FPP,CPP |
FP-2000 |
2000 |
980~1270 |
165 |
FPP,CPP |
FP-2250 |
2250 |
1200~1550 |
235 |
FPP,CPP |
FP-2500 |
2500 |
1450~2100 |
326 |
FPP,CPP |
FP-2750 |
2750 |
2060~2480 |
378 |
FPP,CPP |
FP-3000 |
3000 |
2300~2930 |
462 |
FPP,CPP |
Note: The sizes of the above table are for reference only. We can manufacture the product according to customer¡¯s request.
Product showing:

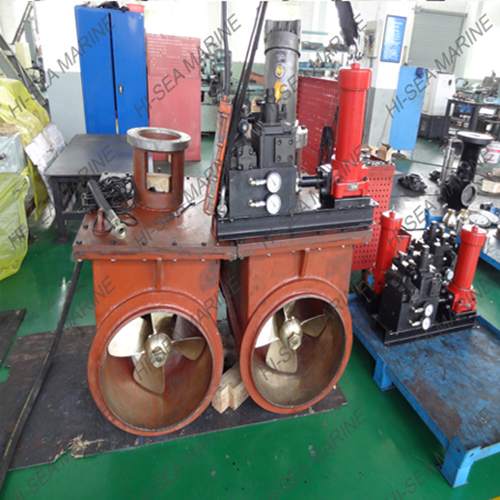

Hydraulic Drive Bow Thruster
