Controllable Pitch Propeller Bow Thruster
[Search Related Products]Controllable Pitch Propeller Bow Thruster
With almost twenty years trading experience, our company can supply many types of bow thrusters. Controllable pitch propeller (CPP) bow thruster is one kind of them. Bow thrusters are primarily used for docking, slow speed maneuvering, emergency steering and station keeping at zero or slow forward speed. Usually, they are installed transversely in the bow or stern of a vessel. Our CPP bow thrusters are approved by CCS, ABS, BV, DNV, NK, KR, GL, etc. If you are interested in our products, please be free to contact us, we¡¯d love to serve you.
CPP Bow Thruster Technique Data |
|||||||
Model |
BT1000 |
BT1100 |
BT1300 |
BT1650 |
BT2000 |
BT2400 |
BT2800 |
Max. input power (KW) |
280 |
315/335 |
445/480 |
680/730 |
1050/990 |
1580/1720 |
2000/1910 |
Reduction ratio |
3.09 |
3.09 |
3.78 |
4.72 |
4.82 |
4.645 |
4.395 |
Max. input speed (r/min) |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1190 |
980/1190 |
980/880 |
Propeller speed (r/min) |
469.1/560 |
469/566 |
384/463 |
307/370 |
301/247 |
211/256 |
223/200 |
Propeller dia. (mm) |
1000 |
1100 |
1300 |
1650 |
2000 |
2400 |
2800 |
Max. thrust |
43 |
46/47 |
66/67 |
97/105 |
155/144 |
239/242 |
298/297 |
Cylinder standard length (mm) |
1045 |
1045 |
1190 |
1446 |
1680 |
1990 |
2280 |
Cylinder standard inner dia. (mm) |
1020 |
1120 |
1328 |
1680 |
2030 |
2430 |
2836 |

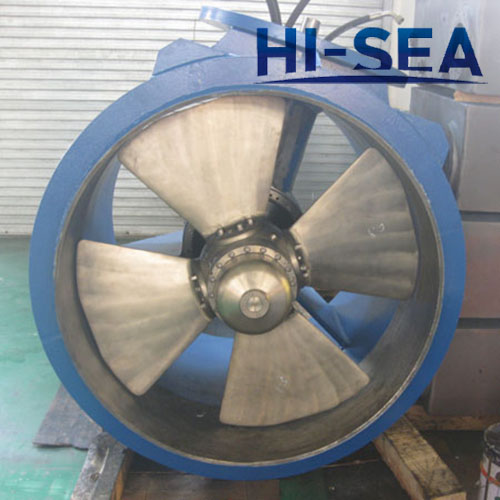

Product showing:
Marine Controllable Pitch Propeller Bow Thruster
