Fixed Pitch Propeller Bow Thruster
[Search Related Products]Fixed Pitch Propeller Bow Thruster
Bow thruster is a propeller mounted in one or more tunnels in the bow below the waterline to make vessel maneuvered much easier. It can be powered by diesel engine, electric motor or hydraulic motor. We can supply CPP bow thruster and FPP bow thruster. When fixed-pitch propellers are used, electric and hydraulic motors allow the direction of thrust to be reversed. And an additional reversing gearbox is required if the thruster is powered by a diesel engine. Any question about our products, please be free to contact us, we will answer you as soon as possible.
Features:
•For extreme load conditions
•For continuous and short-time service
•Low noise and vibration
•Compact design due to horizontal, vertical or inclined arrangement of the power input flange
•Combinable with diesel, hydraulic or electric drive
•Certification: CCS, BV, ABS, DNV, NK, KR, GL, RINA, etc.
Fixed pitch propeller bow thruster parameters |
|||||||||
Model |
FP-500 |
FP-600 |
FP-700 |
FP-800 |
FP-900 |
FP-1000 |
FP-1100 |
FP-1300 |
FP-1480 |
Max input power |
63/72 |
90/105 |
135/165 |
180/190 |
200/235 |
280/290 |
315/340 |
445/480 |
560/620 |
Ratio |
1.52 |
2.071 |
2.07 |
2.417 |
2.42 |
3.09 |
3.09 |
3.78 |
4.364 |
Max input torque |
600 |
900 |
900 |
1400 |
1400 |
2100 |
2100 |
3000 |
3800 |
Max input speed |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
Propeller speed |
954/1151 |
700/845 |
700/845 |
600/724 |
600/724 |
469.1/566 |
469.1/566 |
384/463 |
332.3/401 |
Propeller diameter |
500 |
600 |
700 |
800 |
900 |
1000 |
1100 |
1300 |
1480 |
Max thrust |
10/11.2 |
14.5/16.3 |
20/24.8 |
29.5/30.5 |
31/35.4 |
43/45.2 |
49/53.8 |
67/73 |
88/95 |
Cylinder length |
600 |
800 |
800 |
920 |
920 |
1045 |
1045 |
1190 |
1320 |
Cylinder internal |
515 |
615 |
715 |
818 |
918 |
1020 |
1120 |
1328 |
1510 |
Product displaying:

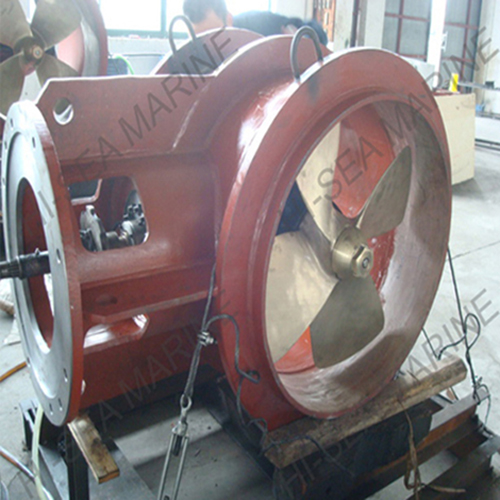

Marine Fixed Pitch Propeller Bow Thruster
