Hydraulic Tunnel Thruster

[Search Related Products]
Hydraulic Tunnel Thruster

Hydraulic Tunnel Thruster

According to the propeller type, our tunnel thrusters are fallen into controllable pitch propeller tunnel thruster (CPP type) and fixed pitch propeller tunnel thruster (FPP type). Our tunnel thrusters can be driven by diesel engine, electric motor or hydraulic motor. This one is the hydraulic-driven type. It gets power supply from hydraulic pack and generates thruster through propeller rotation. Compare with electric motor bow thruster, hydraulic bow thruster has a simple structure which can save a lot of space. Our tunnel thruster is widely used to improve the maneuverability of vessels when docking or steering. It is approved by certificates of CCS, BV, DNV, ABS, NK, KR, etc. Any question about our products, please be free to contact, we will reply you with detail timely.

Main advantages:

1. Skew and large area ratio blade leading to low vibration and better cavitations performance

2. High strength and long life gears and bearings, and good lubrication and cooling, improving whole machine¡¯s reliability

3. Optimal design for underwater mechanism, compact structure, easy installation and maintenance

4. Better stern seal to ensure tightness and meet requirements of increasingly strict marine pollution prevention

Technique data:

Model

Propeller diameter (mm)

Power (KW)

Max thrust (KN)

Propeller type

FP-600

600

20~75

16

FPP

FP-900

900

75~210

33

FPP

FP-1100

1100

200~330

46

FPP & CPP

FP-1300

1300

310~470

66

FPP & CPP

FP-1650

1650

450~760

108

FPP & CPP

FP-1850

1850

720~1020

132

FPP & CPP

FP-2000

2000

980~1270

165

FPP & CPP

FP-2250

2250

1200~1550

235

FPP & CPP

FP-2500

2500

1450~2100

326

FPP & CPP

FP-2750

2750

2060~2480

378

FPP & CPP

FP-3000

3000

2300~2930

462

FPP & CPP

Note: The sizes of the above table are for reference only. We can manufacture the product according to client¡¯s requirements.

Picture displaying:

Hydraulic Tunnel Thruster

Hydraulic Tunnel Bow Thruster

Hydraulic Tunnel Thruster

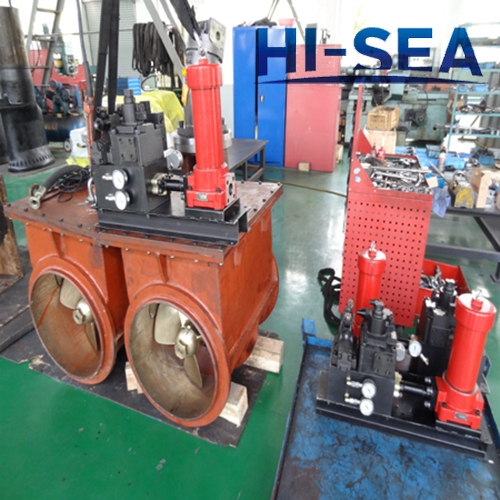

Hydraulic Fixed Tunnel Thruster
