Engine Bow Thruster
[Search Related Products]Engine Bow Thruster
Bow thrusters have 3 drive types: electric drive, hydraulic drive and engine drive. Engine drive type is the one with the simplest construction. It can directly control the thruster and save cost a lot. An additional reversing gearbox is required if the thruster is powered by a diesel engine. When the vessel is docking or steering, this engine bow thruster could be used as auxiliary propulsion to improve maneuverability of the vessel. Our engine bow thruster is approved by CCS, BV, DNV, NK, ABS, GL, etc. We promise to supply the product with high quality and first-class service. Any question about our products, please feel free to contact us. We will give you a quick reply.
Drawing and specification:

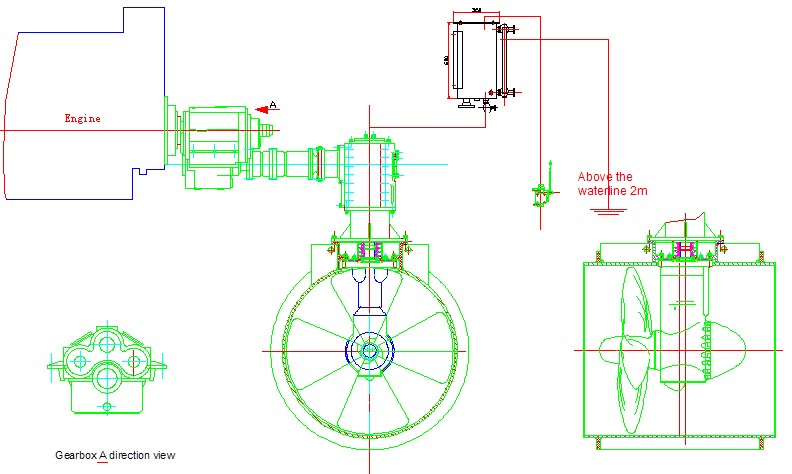

Engine Drive Bow Thruster Drawing
Model |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
||||||
Max Input Power (kW/h.p) |
63 /86 |
50 /68 |
125 /170 |
100 /136 |
200 /272 |
315 /428 |
350 /476 |
280 /381 |
500 /680 |
550 /748 |
450 /612 |
900 /1224 |
735 /1000 |
1250 /1700 |
1000 /1360 |
Max Thrust (kN) |
9.5 |
7.9 |
17.5 |
14.5 |
28 |
44 |
50 |
42 |
70 |
84 |
73 |
125 |
107 |
183 |
155 |
Drum Length (mm) |
1000 |
1000 |
1000 |
1500 |
1500 |
1500 |
1500 |
1500 |
2000 |
||||||
Pipe Thickness (mm) |
12 |
12 |
15 |
20 |
20 |
20 |
20 |
20 |
25 |
||||||
Propeller Diameter (mm) |
500 |
630 |
800 |
1000 |
1100 |
1250 |
1500 |
1750 |
2100 |
||||||
Weight £¨KG£© |
300 |
430 |
730 |
1450 |
1510 |
2450 |
2680 |
5400 |
8700 |
Product picture:

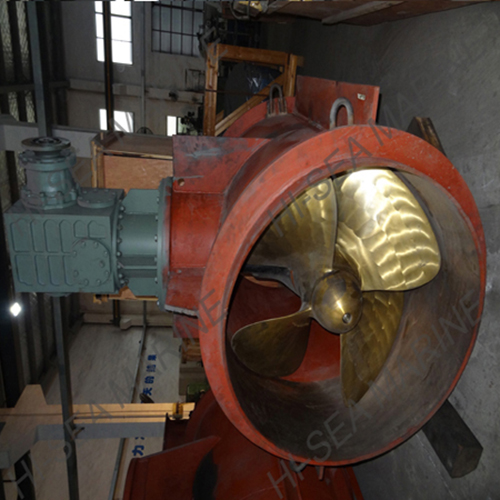

Diesel Engine Drive Bow Thruster
