FPP Bow Thruster
[Search Related Products]FPP Bow Thruster
Our bow thrusters are fallen into two types: CPP bow thrusters and FPP bow thrusters. All of our FPP bow thrusters are approved by ABS, BV, DNV, CCS, NK, KR, GL, etc. The input power the FPP type range from 63KW to 2000KW, and the propeller diameter range from 500mm to 2800mm. Customers can choose feely from the following table. But if you can find what you really want. Please send us your drawing or sample. We will design and manufacture the product according to your requirements. Any question about our products, please be free to contact us, we will answer you as soon as possible.
FPP Bow Thruster Technique Data |
||||||||||||
Model |
BT500 |
BT600 |
BT700 |
BT800 |
BT900 |
BT1000 |
BT1100 |
BT1300 |
BT1650 |
BT2000 |
BT2400 |
BT2800 |
Max. input power (KW) |
63/72 |
90/105 |
135/165 |
189/190 |
200/235 |
280/290 |
315/340 |
445/480 |
680/730 |
1050/990 |
1580/1720 |
2000/1910 |
Reduction ratio |
1.52 |
2.071 |
2.07 |
2.417 |
2.42 |
3.09 |
3.09 |
3.78 |
4.72 |
4.82 |
4.645 |
4.395 |
Max. input torque (N.m) |
600 |
900 |
900 |
1400 |
1400 |
2100 |
2100 |
3000 |
3800 |
4500 |
7250 |
15400 |
Max. input speed (r/min) |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1750 |
1450/1190 |
980/1190 |
980/880 |
Propeller speed (r/min) |
954/1151 |
700/845 |
700/845 |
600/724 |
469.1/566 |
469.1/566 |
469/566 |
384/463 |
307/370 |
301/247 |
211/256 |
223/200 |
Propeller dia. (mm) |
500 |
600 |
700 |
800 |
900 |
1000 |
1100 |
1300 |
1650 |
2000 |
2400 |
2800 |
Max. thrust |
10/11.2 |
14.5/16.3 |
20/24.8 |
29.5/30.5 |
31/35.4 |
43/45.2 |
46/47 |
66/67 |
97/105 |
155/144 |
239/242 |
298/297 |
Cylinder standard length (mm) |
600 |
800 |
800 |
920 |
920 |
1045 |
1045 |
1190 |
1446 |
1680 |
1990 |
2280 |
Cylinder standard inner dia. (mm) |
515 |
615 |
715 |
818 |
918 |
1020 |
1120 |
1328 |
1680 |
2030 |
2430 |
2836 |

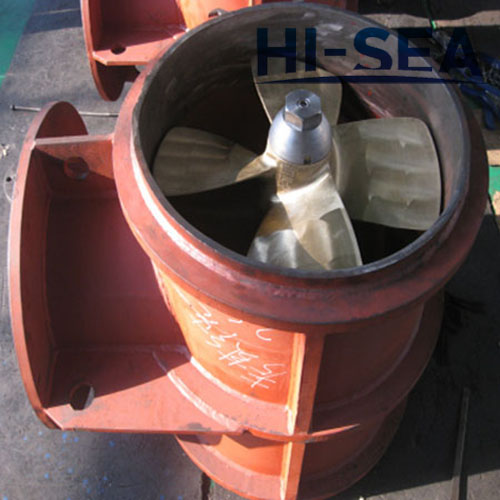

Picture showing:
Marine FPP Bow Thruster
