Cold Light Source Solar Integrated Navigation Light
[Search Related Products]
Cold Light Source Solar Integrated Navigation Light
HS-BL150SP6 solar integrated LED navigation lantern is our latest designed solar integrated navigation lamp. This lamp adopts the Fresnel lens with circular continuous focus, high-energy rechargeable lithium battery and solar maximum power 20W. In the flash duty cycle 25% conditions, the lamp can provide power for constant 25 days without sunshine and has the maximum range of 6.1nautical miles.
HS-BL150SP6 solar integrated LED navigation lantern can support flash synchronisation. When the lamp equipped with AIS,GPRS, Big Dipper satellite or other communication modules, the lamp can realize flash synchronization and remote measurement and control.
The maritime navigation light uses the marine grade aluminum alloy material base with the protection level of IP68.
Application
Coastal, Yangtze River and Inner waterways etc.
Customized Service
We can supply both standard products and customized products according to your special requirements to meet your different needs.
Techinical Parameters
Model |
HS-BL150SP6 |
Working Voltage |
12V |
Effective Visual Range |
6.1nautical mile (T=0.74, when flashing ӨbrightnessӮ time t=0.5s ) |
Daylight Switch |
200Lux+50Lux |
Character |
IALA 256 types |
Photoelectric Conversion Efficiency |
£¾25cd/w |
Divergence Angle |
8”ć |
Level Distribution Uniformity |
£¾85% |
Solar Power |
20W |
Supported Constant Light-free Days |
15 days(duty cycle25%) |
Working Temperature |
-30”ę~+70”ę |
Relative Humidity |
100% (condensation) |
Service Life |
3 years |
Installation Size |
6-¦µ16 evenly distributed on the pitch circle ¦µ195/¦µ200 |

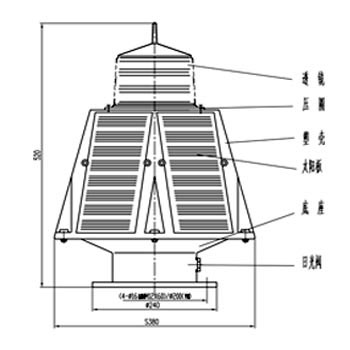

Drawing of Cold Light Source Solar Integrated Navigation Light
