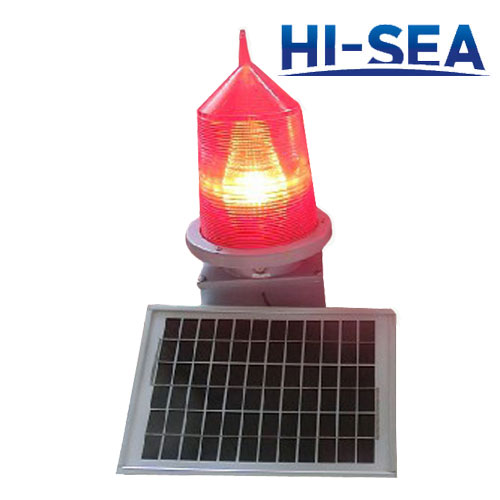

GPS Flash Synchronisation Marine Lantern

[Search Related Products]

GPS Flash Synchronisation Marine Lantern

GPS Flash Synchronisation Marine Lantern

GPS synchronized flashing marine lantern is a common navigation mark lamp which is installed with a GPS module in its control circuit, using the timing function of the global satellite positioning system to force the control signal in the beacon to twinkle in accordance with the standard time provided by the satellite. All the other navigation mark lamps with GPS module flash according to the standard time of satellite, which achieves the flash synchronisation of all lamps.

Function

Navigation mark light is one category of traffic lights which are installed on some of the navigation marks in order to ensure the safety of ships when sails at night. The navigation mark light issues specified light color and flash frequency at night to achieve the prescribed irradiation angle and visibility.

Application

Coastal, inland rivers, lakes, ports, large reservoirs and other navigable waterways.

Customized Services

We can supply both the standard products and customized products according to your special requirements to meet your different needs.

Technical Parameters of GPS Flash Syncronisation Navigation Light

Model

HS-122-LED(GPS)

HS155-LED(GPS)

Note

Working Voltage

DC12V(4V)

optional

Solar Panels

8W

10-11W

optional

Battery

12V12AH

12V24AH

optional

Control Mode

Light-operated,Automatic Opening and Closing (time control)

optional

Character

Red, Green, Yellow, White, Blue

optional

Light Range

2~10km

optional

Synchronous Consistency

¡Ü0.02ms

Outline Dimensions

300*500

350*620

Chassis Dimension

Pitch Circle150mm Equispaced 4~10mm Hole

Pitch Circle170mm Equispaced 4~10mm Hole

Installation Method

Flange

Net Weight

7kg

9kg


GPS Flash Synchronisation Marine Lantern

GPS Flash Synchronisation Marine Lantern
