Solar LED Marine Light

[Search Related Products]

Solar LED Marine Light

Solar LED Marine Light

1. Based on LED technics, its color is in accordance with IALA Recommendations E-200-1;

2. Integrated design of lamp body to achieve the protection level IP68;

3. PC material, anti UV, anti vibration and corrosion resistance;

4. With bird proof device;

5. 256 kinds of characters to be adjustable to meet requirements of IALA;

6. Light intensity 25%,50%,75%,100% to be adjustable;

7. Photoelectric automatic control, with manual switch;

8. Humanization design, with anti-fall device during the process of installation and adjustment ;

9. Built-in nickel metal hydride battery, easy to replace;

10. No radio frequency, no electromagnetic interface;

11. Stable working performance, low cost

Application

Applicable to offshore buoys, inland river bouys, shore beacons, fixed light beacons, offshore oil derrick signal lamps and so on.

Technical Parameters

Model

HS201A solar navigation mark light

Light Source Output

Effective Light Intensity

10cd

Visual Range

£¾2.5nm

LED Color for option

Red, Amber Yellow, Green, Blue, White

Vertical Divergence Angle

£¾9¡ã

Horizontal Divergence Angle

360¡ã

Light Source

LED

LED Service Life

¡Ý100,000 hours

Working

Continous Lighting Time

£¾20 days (12 hour darkness, 12.5% duty cycle)

Daylight Illuminance Threshold Value

300lux¡À100lux

Character

IALA256 kinds Color(including all time brightness, adjustable)

Power Supply

Power Supply

Single crystal silicon solar panels

Max. Output Power

1.8 watts

Battery

High-effect nickel metal hydride rechargeable battery

Battery Capacity

3.6V/8AH

Mechanical Structure

Integrated Light Cover

Outdoor anti UV grade polycarbonate (PC)

Waterproof Grade

IP68

Weight

1.7KG

Working Temperature Range

-30¡æ~+70¡æ

Outline Dimension

Height 170mm, Diameter 228mm

Installation Dimension

¦µ200~4XM6

Customized

External Power Supply, Infrared Control

Installation Method and Precautions

1. Please read the instruction carefully and use the product correctly;

2. Solar lamp must be installed to the place where can get full sunlight to ensure it can work continously;

3. Place the lamp on the vertical mounting surface with the lamp axis; the mounting surface should be smooth and sufficient in mechanical strength;

4. If the light is not bright during the first use, please put the lamp in the sunlight for 12 hours or plug in the charger to get power; then it can work normally

( during the charging process, the manual switch should be placed in the ON side, otherwise it can not be charged);

5. For long time storage, the StAt should be turned to OFF and place the light in the dry sub humid place; please take out the solar panels and put it in sunlight for three days or use charger to get full energy every 40 days to ensure the battery capacity;

(please put the manual switch on the ON side in the case of sun exposure)

6. Bulit-in nickel metal hydride batteries, after the use of 450 times (15months), the battery capacity is about 80% of the initial, please replace the battery in time;

7. To protect batteries from damage during the shipping and storage, the lamp bottom is installed with a manual switch and set into OF status; before installation or testing, please set the manual switch into ON side, and then adjust the character and light intensity you need;

8. If you face any problem when using the products, please feel free to contac us.

Solar LED Marine Light

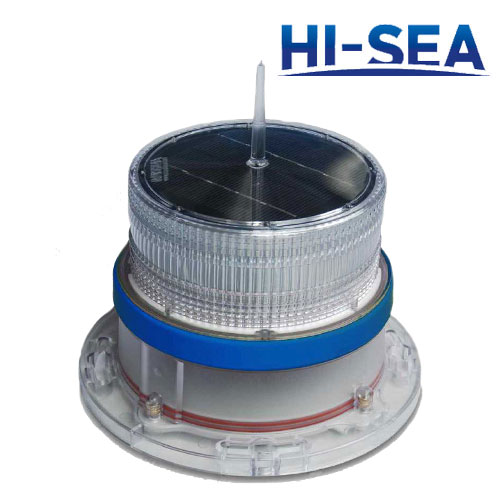

Blue Light Source Solar LED Marine Light

Solar LED Marine Light

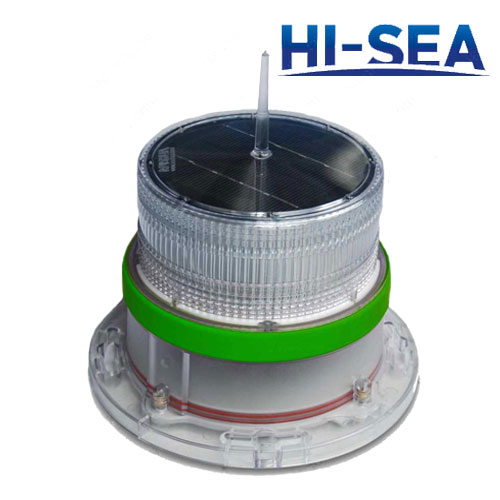

Green Light Source Solar LED Marine Light

Solar LED Marine Light

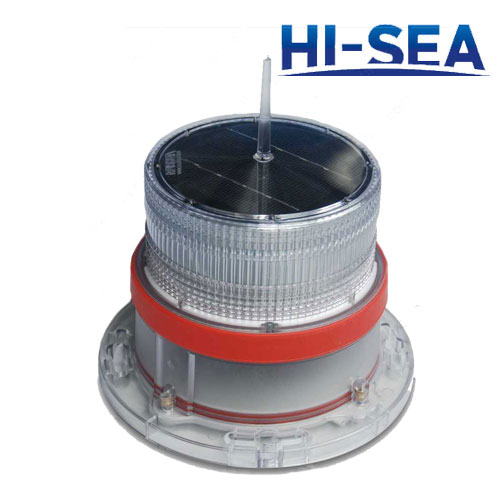

Red Light Source Solar LED Marine Light

Solar LED Marine Light

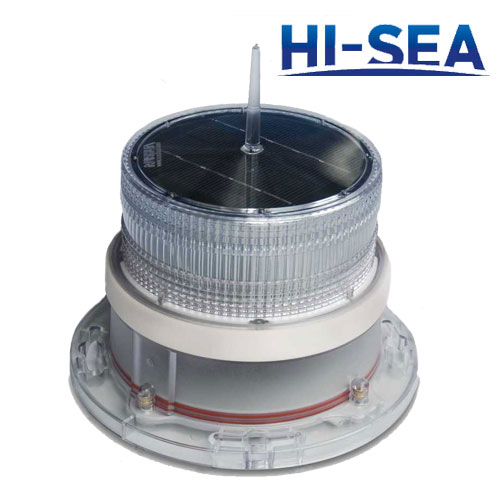

White Light Source Solar LED Marine Light

Solar LED Marine Light

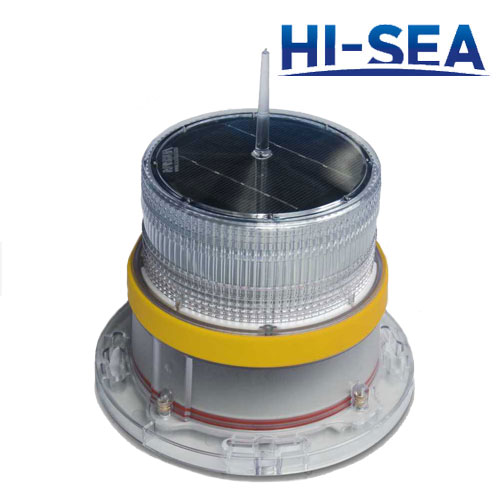

Yellow Light Source Solar LED Marine Light
