Marine Light Aids to Navigation
HS-ML300 navigation mark lights are composed by 300mm anti UV sigle cone Fresnel lens, HS-FL100 six-headed electronic flash bulb exchange apparatus, high efficiency halogen navigation bulbs and marine grade alluminum alloy chassis. When equipped with 12V 100W halogen navigation bulb, the maximum visual range is 12 nautical miles (flash time t=0.5s, T=0.74).
Application
Mainly used for fixed light beacons and small lighthouses
Technical Parameters
Model |
HS-ML300 |
Working Voltage |
12V DC |
Max. Power |
150W |
Lens Material |
Anti UV polycarnonate |
Chassis Material |
Engineering plastics/marine grade alluminum alloy (optional) |
Flash Characters |
IALA256 |
Communication Serial Port |
RS232/RS485(optional) |
Environment Temperature |
-25¡æ~65¡æ |
Protection Level |
IP56 |
Weight |
8KG |
Installation Dimension |
6 holes with diameter 16mm evenly distributed on 200mm pitch circle |
HS-ML300 Navigation Light (using halogen navigational bulbs) |
||||||||||||||
Vertical Divergence Angle |
Light Intensity Chart Corresponding to Different ¡®Brightness¡¯ time |
Bulb Power |
||||||||||||
Fixed Light |
0.1sec |
0.2sec |
0.3sec |
0.4sec |
0.5sec |
0.6sec |
0.7sec |
0.8sec |
0.9sec |
1.0sec |
1.1sec |
1.2sec |
||
1.5¡ã |
325 |
108 |
162 |
195 |
216 |
232 |
243 |
252 |
260 |
265 |
270 |
275 |
278 |
12V-5W |
2.6¡ã |
580 |
193 |
290 |
348 |
386 |
414 |
435 |
451 |
474 |
474 |
483 |
490 |
497 |
12V-10W |
1.8¡ã |
1150 |
383 |
575 |
690 |
766 |
821 |
862 |
894 |
920 |
940 |
958 |
973 |
985 |
12V-20W |
2.5¡ã |
1170 |
590 |
885 |
1062 |
1180 |
1264 |
1327 |
1376 |
1416 |
1448 |
1475 |
1497 |
1517 |
12V-35W |
2.5¡ã |
2700 |
900 |
1350 |
1620 |
1800 |
1928 |
2025 |
2100 |
2160 |
2209 |
2250 |
2284 |
2314 |
12V-50W |
3.0¡ã |
4635 |
1545 |
2317 |
2718 |
3090 |
3310 |
3476 |
3605 |
3708 |
3792 |
3862 |
3921 |
3972 |
12V-100W |
4.0¡ã |
6000 |
2000 |
3000 |
3600 |
4000 |
4500 |
4500 |
4666 |
4800 |
4909 |
5000 |
5076 |
5142 |
12V-150W |

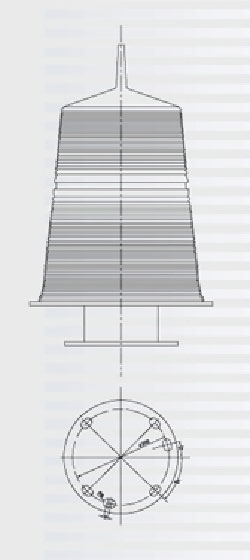

Drawing of Marine Light Aids to Navigation
