Solar Navigation Mark Light

Solar Navigation Mark Light

1. Based on LED technics, its color is in accordance with IALA Recommendations E-200-1;

2. Integrated design of lamp body to achieve the protection level IP68;

3. PC material, anti UV, anti vibration and corrosion resistance;

4. With bird proof device;

5. 256 kinds of characters to be adjustable to meet requirements of IALA;

6. Light intensity 25%,50%,75%,100% to be adjustable;

7. Photoelectric automatic control, with manual switch;

8. Humanization design, with anti-fall device during the process of installation and adjustment ;

9. Built-in nickel metal hydride battery, easy to replace;

10. No radio frequency, no electromagnetic interface;

11. Stable working performance, low cost

Application

Applicable to offshore buoys, inland river bouys, shore beacons, fixed light beacons, offshore oil derrick signal lamps and so on.

Technical Parameters

Model

HS401A solar navigation mark light

Light Source Output

Effective Light Intensity

£¾40cd

Visual Range

£¾4nm

LED Color for option

Red, Amber Yellow, Green, Blue, White

Vertical Divergence Angle

£¾7¡ã

Horizontal Divergence Angle

360¡ã

Light Source

LED

LED Service Life

¡Ý100,000 hours

Working

Continous Lighting Time

£¾20 days (12 hour darkness, 12.5% duty cycle)

Daylight Illuminance Threshold Value

300lux¡À100lux

Character

IALA256 kinds Color(including all time brightness, adjustable)

Power Supply

Power Supply

Single crystal silicon solar panels

Max. Output Power

6W*4

Battery

Maintenance-free sealed lead acid battery

Battery Capacity

12V/24AH

Mechanical Structure

Integrated Light Cover

Outdoor anti UV grade polycarbonate (PC), chassis is made of special stainless steel 316 for ships

Waterproof Grade

IP68

Weight

20KG

Working Temperature Range

-35¡æ~+70¡æ

Outline Dimension

Height 580mm, Diameter 270mm

Installation Dimension

Chassis 230mm, pitch circle ¦µ200~4XM6

Customized

External Power Supply, Infrared Control

Solar Navigation Mark Light

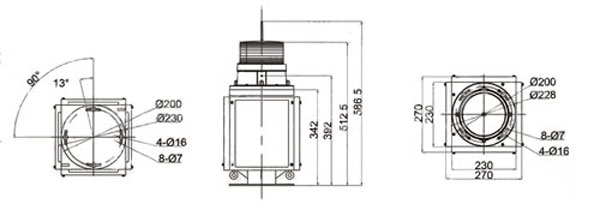

Installation Size Chart

Solar Navigation Mark Light

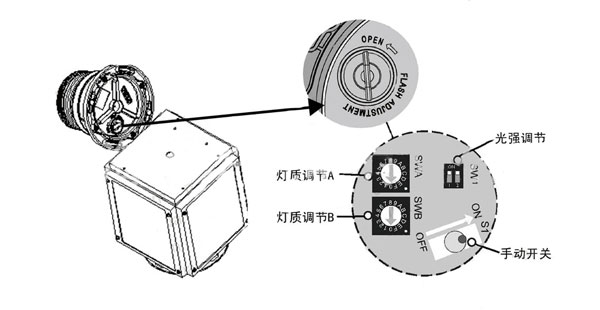

Character and Light Intensity Adjustment

Solar Navigation Mark Light

Adjustment Method

1. Open the lid of the box on the four screws; take the lamp and then open the rotating plug according the the OPEN direction of the rotating plug on the lamp bottom; then you can see the manual switch, light intensity adjustment and characters adjustment device.

2. Switch Adjustment Method: Open, adjust the manual switch to the ON side; Close, adjust the manual switch to the OFF side.(Note: under the condition of ON, only in less than 300LX¡À100LX illumination, the lamp will be bright.)

3. Character Adjustment Method: adjust manually the encoder SWA and SWB, each adjustment is corresponding to a set of lights.

4. 256 kinds of characters are described in the instruction manual,characteristics of light instructions (6 kinds of characters can be customized)

Encoding Light

Meaning

F

Fixed

FL

Flicker Frequency during Fixed Time, e.g. FL(2) 5.5S Flicker twice every 5.5s

Q

Quick Flash

VQ

Very Quick Flash

OC

Occulting Light, Longer than the timeout

ISO

Equal Light, light time is equal to light off time

LFL

Long Time, Long Flash

MO

Morse Signal,including Characters

For example: VQ(6)+LFL 15 S. A long flash after 6 times quick flashes within 15 seconds

5. Light Intensity Adjustment Method: adjust manually 1 and 2 of the dial switch SW1;the different position of the two dial number 1 and 2 means different light intensity. The detailed light intensity values can be found in the light intensity adjustment diagram on the left side.
