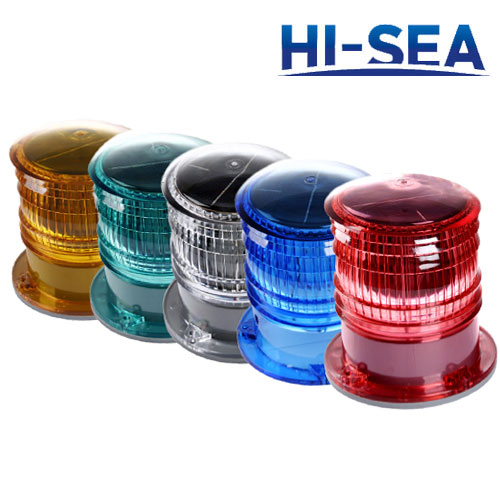

Solar Warning Light Navigation Mark Light
This type of solar warning light is the most popular solar ocean warning light for decades and has been the world¡¯s most classic aid to navigation products. The self-contained, reliability and durability makes the light be perfectly applied to all kinds of warning occasions. It is easy to install and can be installed in a few minutes and has long service life.
Features and Advantages
1. Five Colors for Option: Red, Green, Yellow, Blue and White
2. Lens is made of Polycarbonate material, having good resistance to impact and waterproof; can work under harsh environments;
3. Just few minutes to install; convenient and quick;
4. Automatically open at nightfall and close at dawn; no need of personnel management
5. All-weather charge, more than 140 hours of continous work when full of power;
6. No external connection, without battery or wick placement; maintenance free;
7. Integrated design, with good water resistance;
8. Production implementation of ISO9001:2008 Quality management system
Application
Lighthouse, mast lamp, safe water mark, drilling platform, dock and other occasions needing safety warning
Technical Parameters
Model |
DWS302/TS Solar Warning Light Navigation Mark Light |
||
Output Mode |
Flash |
Light |
|
Peak Luminance 360¡ã |
White |
16.0cd |
10.0cd |
Red |
12.0cd |
7.5cd |
|
Yellow |
13.0cd |
8.5cd |
|
Green |
12.0cd |
7.5cd |
|
Blue |
7.2cd |
4.0cd |
|
Visual Range |
3nm |
2nm |
|
Horizontal Output |
360¡ã |
||
LED Number |
16Pcs |
8Pcs |
|
Working |
|||
Minimum Autonomous Time |
140hours |
70hours |
|
Latitude Range |
55¡ãS to 55¡ãN |
||
Optical Threshold |
60/100Lux |
||
Service Life |
Up to 100,000hours |
||
Solar Panels |
|||
Type |
Monocrystalline Silicon |
||
Max. Power |
1.5w |
||
Transformation Rate |
16% |
||
Battery |
|||
Type |
Nickel Metal Hydride Battery, adjustable |
||
Capacity |
5Ah |
||
Structure |
|||
Lens Material |
Polycarbonate |
||
Lens Color for Option |
Red, Greem, Blue, Yellow, White |
||
Installation Mode for Option |
Screw or Magnet |
||
Weight |
0.9kg |
||
Working Environment |
|||
Temperature Range |
-40¡æ to+80¡æ |
||
Waterproof and Dust-proof Grade |
IP67 |
||
Certificates and Patents |
|||
Quality Certificate |
ISO9001:2008 |
||
CE Authentication |
CTR090817073E |
||
Patents |
02224444.1 and 200430015589.3 |
