High Intensity LED Marine Marker Light

[Search Related Products]

High Intensity LED Marine Marker Light

High Intensity LED Marine Marker Light

1. HS-L350A low power consumption and high intensity LED navigation mark light can be used as remote navigation light;

2. Nominal range is up to 12.5 nautical miles;

3. Fixed light light intensity is up to 6000cd;

4. The effective light intensity is 4284cd and the light range is 12.5nm(T=0.74) when the flash duration is 0.5 second;

5. Red, Yellow, Blue, White and Green Color for option;

6. Photoelectric conversion efficiency is 50cd/W;

7. Built-in GPS synchroniztaion module can realize wireless synchronious flash of multi-lamp;

8. Built-in GSM/VHF communication module(RTU), can be used as remote monitoring terminal.

Technical Parameters

Model

HS-L350A

Working Voltage

12V(10V~30V)

Daylight Switch

300Lux¡À50Lux

Photoelectric Conversion Efficiency

£¾50cd/W

Dark Current

£¼5mA

Consumed Power

120W(when light is bright)

Divergence Angle

2.5¡ã(in accordance with IALA standard)

Horizontal Distribution Uniformity

£¾90%

Communication Serial Port

RS232/RS485(optional)

Lens Material

Anti UV organic glass

Working Temperature

-30¡æ~+70¡æ

Relative Humidity

100%(condensation)

Protection Level

IP68

High Intensity LED Marine Marker Light

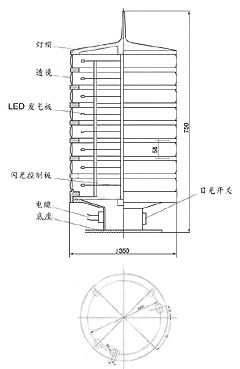

Drawing of High Intensity LED Marine Marker Light

High Intensity LED Marine Marker Light

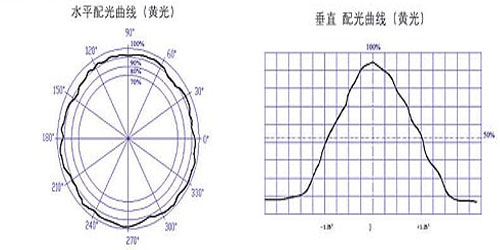

Yellow Light Horizontal and Vertical Light Distribution Curve

High Intensity LED Marine Marker Light

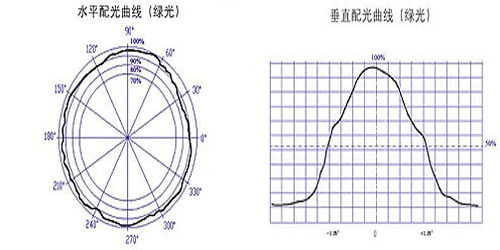

Green Light Horizontal and Vertical Light Distribution Curve

High Intensity LED Marine Marker Light

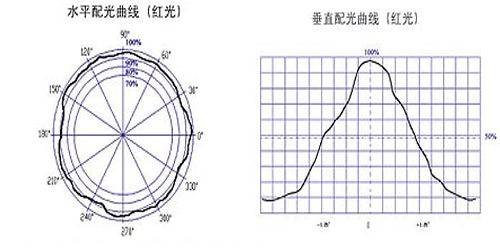

Red Light Horizontal and Vertical Light Distribution Curve

High Intensity LED Marine Marker Light

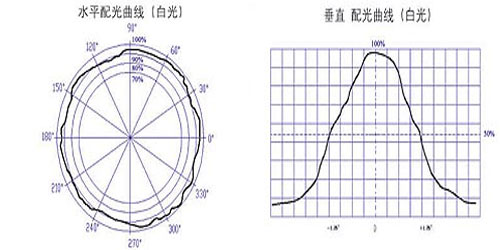

White Light Horizontal and Vertical Light Distribution Curve
