Marine Buoy Light

Marine Buoy Light

HS-ML155 marine navigation light is composed by plastic single cone Fresnel lens, engineering plastic base, six-headed electronic flash bulb change apparatus and high efficient halogen navigation bulbs. Due to the adoption of high performance prefocus Halogen beacon bulb as luminescent source, it has accurate light source focus and high light energy utilization, making the light intensity of the lantern 20% higher than that of ordinary incandescent light bulbs.

Application

Used as offshore buoy navigation beacon lights, fixed light beacon navigation lights and so on.

Technical Parameters

Model

HS-ML155

Working Voltage

12V DC

Voltage Range

10~36V

Flash Characteristics

IALA256

Output Power

150W

Communication Serial Port

RS232/RS485(optional)

Vertical Divergence Angle

8”ć

Quiescent Current

£¼2mA

Environment Temperature

-25”ę~+65”ę

Installation Dimension

4 ¦µ16mm holes evenly distributed on diameter 200mm pitch circle

Weight

3.5kg

HS-ML155 Navigation Mark Light(at 50% peak value of light intensity, divergence angel is 8”ć )

Different ӨBrightnessӮ Time Light Intensity Chart

Consumption Power(W)

Fixed

0.1sec

0.2sec

0.3sec

0.4sec

0.5sec

0.6sec

0.7sec

0.8sec

0.9sec

1.0sec

1.1sec

1.2sec

270

90

135

162

180

192

202

210

216

220

225

228

231

12C-1A

500

166

250

300

333

357

375

388

400

409

416

423

428

12V-2A

850

283

425

510

566

607

637

661

680

695

708

719

728

12V-3A


Marine Buoy Light

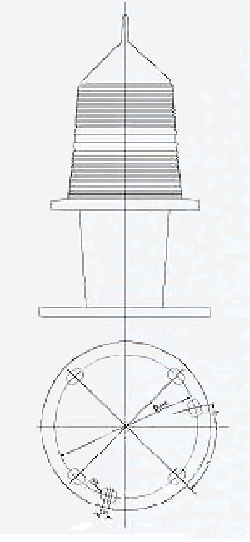

Drawing of Marine Buoy Light
