Solar LED Buoy Light Navigation Obstruction Mark Light
HS-155B and HS-155C solar integrated navigation mark light is composed by Fresnel plastic lens, 5 sides solar panels, high performance and maintenance-free battery pack, multilayer high brightness LED integrated light source, microcomputer controller flash, daylight valve switch, marine grade aluminum alloy chassis, sealing battery box, power supply control switch, charger and charging connection port, navigation mark telemetering terminal interface and so on.
Flash control circuit of this lamp has been programmed to generate 256 kinfs of flash character signals so that the user can pull the code according to the required signal character. GPS module synchronization flash is avaiable to the lamp.
This solar integrated navigation lamp meets the national requirements of energy saving and emission reduction and green envirionmental protection.
Application
Applicable to inland and coastal buoys, shore beacons and lighthouses; transmission tower (electtric power, communication, microwave etc.), chimney (thermal power plant, coking plant, chemical plants etc.), high-rise buildings, bridges, large port machinery, large-scale engineering machinery, wind turbines and otheroccasions needing warning of aviation.
Technical Parameters
Model |
HS-155B |
HS-155C |
Working Voltage |
12v |
|
Quiescent Current |
£¼5mA |
|
Color |
Red, Green, Yellow, Blue, White |
|
Peak Luminous Intensity |
4060cd |
2080cd |
Light Horizontal Output |
¡Ý8¡ã(in accordance with IALA standard) |
|
Solar Cell Power |
24W (6 sides) |
18W(6sides) |
Battery Capacity |
24AH(battery pack) |
12AH(battery pack) |
LED Integrated Light Source |
100,000 hours service life (flash time up to 20 years) |
|
Continous Luminous Time |
¡Ý70 days |
¡Ý50 days |
Lens Material |
UV resistant polypropylene acrylic acid |
|
Protection Grade |
IP68 |
|
Working Temperature |
-40¡æ~+70¡æ |
|
Relative Humidity |
100%(condensation) |
|
Daylight Switch Sensitivity |
250¡À50Lx |
|
Outline Dimension |
¦µ410¡Á720mm |
¦µ410¡Á650mm |
Installation Dimension |
4holes-14/¦µ195mm |
|
Weight |
18.1kg |
11.2kg |
Visual Range |
12.8nm |
8.1nm |
Vertical Divergence Angle |
360¡ã |
Blue Color Solar LED Buoy Light Navigation Obstruction Mark Light

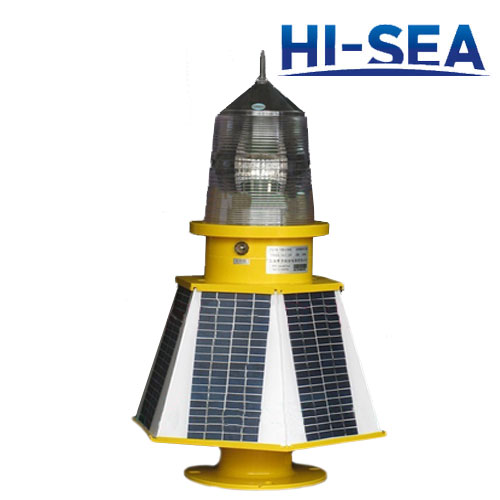

Yellow Color Solar LED Buoy Light Navigation Obstruction Mark Light
