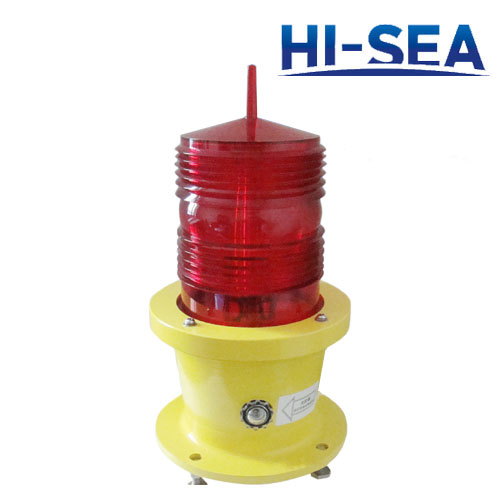

Disc State Cold Light Source Long-life LED Navigation Mark Light
1. Controlled by microcomputer chip;the circuit uses the high quality electronic components; core parts adopt imported components to ensure the quality and service life of the lamp;
2. Red, Green, Blue, Yellow, White Colors for your option;
3. Automatic light-controlled switch flash (close during the day, open at night);
4. The chassis of lamp is casted by alluminum with standard communication interface to make it convenient for installing on different positions on buildings and forming various groups to achieve synchronous flash;
5. Lamp cover uses the polyacrylate Fresnel lens with circular focus diameter 90mm;
6. sunlight resistant, anti-ageing, beautiful appearance, good safety, light weight and small volume; a kind of economica type of navigation mark lamp device;
Application
Used for water, coastal and inland river navigation marks and buoys
Technical Parameters
Model |
HS-90-LED |
Working Voltage |
SC6V or DC12V |
Power Consumption |
180MA |
Flash Frequency |
20~60times/min |
Light Operation Sensitivity |
50~300LX |
Light Range |
2~2.5NM |
Light Source Service Life |
100,000 hours |
Working Environment |
-40¡æ~+70¡æ |
Protection Grade |
IP65 |
Outline Dimension |
360mm¡Á150mm |
Chassis Installation |
Flange Diameter 150mm, evenly distributed 4holes ¡Á¦µ10mm on circle with diameter 120mm |
Lamp Net Weight |
4kg |
