Solar Integrated Oil Platform Navigation Mark Light
[Search Related Products]
Solar Integrated Oil Platform Navigation Mark Light
1. Explosion-proof function,suitable for oil and natural gas platform;
2. No need of connecting external power supply, powered by solar panels;
3. Easy for installation, use and maintenance;
4. Controlled by wireless monitoring;
5. Light intensity of 120000cd meets the effective range from 8nm to 14.5nm;
6. AIS, Big Dipper Satellite or GPRS wireless router can be built in according to user¡¯s need.
7. Getting the explosion-proof certificate approved by official inspection agency and the inspection certificate of China Classification Society(CCS).
Application
Applicable to various types of oil and gas platforms, chemical wharf, dangerous goods docks, storage yard and other occasions where require explosion-proof function.
Techincal Parameters
Model |
HS-BL350A |
Working Voltage |
12V |
Quiescent Current |
£¼1mA |
Visual Range |
8~14.5nm (T=0.74, when t¡Ý0.5s) |
Effective Light Intensity |
120,000cd(max.) |
Daylight Switch |
300Lux+50Lux |
Flash Character |
IALA256 |
Optical/Electronic Transmition Rate |
£¾50cd/W |
Divergency Angle |
8~12¡ã(in accordance with IALA standard) |
Level Distribution Uniformity |
£¾95% |
Color Coordinate |
IALA Color Zone |
Shell |
Marine Grade Aluminum Alloy |
Working Temperature |
-30¡æ~+70¡æ |
Relative Humidity |
100% (condensation) |
Protection Grade |
IP68 |
Explosionproof Grade |
Explosionproof type |
Installation Dimension |
4 of 12mm screw holes are evenly distributed on the 200mm pitch circle |
Certificate |
Explosionproof Certificate and CCS Certificate |

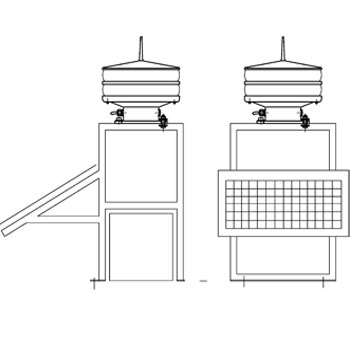

Drawing of Solar Integrated Oil Platform Navigation Mark Light
