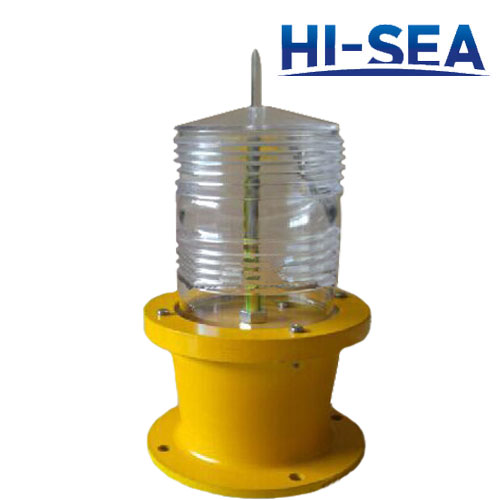

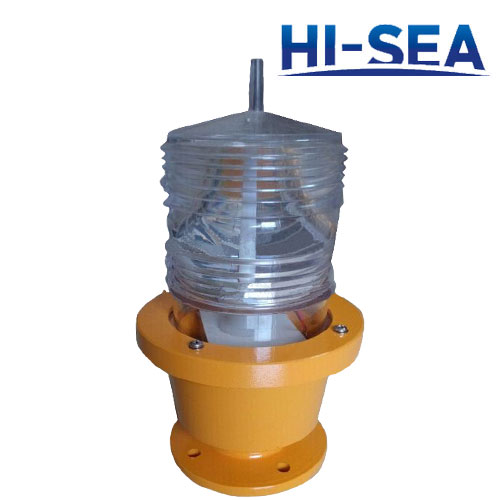

Integrated Navigation Mark Light
HS-90 LED integrated navigation mark light uses 90mm diameter Fresnel lens, focusing on and expanding the launch angle,with the far light radiation and good warning effect. The light source chooses the international latest LED energy-saving lamp; the base is produced by engineering plastic injection molding; the mounting flange is one-time cast by aluminum alloy, whose surface is sprayed high-temperature paint, which is corrosion and ageing resistance.
This navigation mark light has the features of small volume, light weight and simple installation.
Application
Inland and Coastal Waterways
Customized Service
We can supply both standard products and customized products according to your special requirements to meet your different needs.
Technical Parameters
Model |
HS-90LED |
Working Voltage |
DCC.6V |
Light Source |
LED |
Power |
£¼3W |
Character |
16 types adjustable |
Lamp Cover Color |
Red, Green, White |
Lamp Size |
Diameter 150mm, Height 360mm |
Chassis Size |
Pitch Circle Diameter 90mm, evenly distributed four hole diameter 10mm |
Working Condition |
-40¡æ~60¡æ |
Protection Level |
IP65 |
Net Weight |
2Kg |
