Solar Powered Navigation Warning Light

Solar Powered Navigation Warning Light

HS303 solar powered buoy use navigation mark lights are the ideal equipment for the safe light navigation in the sea and inland waterways. For every kind of color, this lamp can provide 16 kinds of flashing mode, covering almost all the flashing code words recommended by IALA and national standards, besides, it can also provide Morse code, SOS code and some of the common custom flash mode. The flash mode can be switched by touch. The indicator light realizes the positioning.

Features and Advantages

1. Five Colors for option: Red, Green, Yellow, Blue and White;

2. Lens are made of polycarbonate material,having good anti impact and water resistance;

3. Only need serveral minutes to finish the installation;easy and fast installation;

4. Automatically opens at nightfall; automatically closes at dawn; unattended management;

5. All day charging; can work continously more than 140 hours when full of electricity;

6. No external connections; no battery plate or wick replacement; maintenance free;

7. Can select the desired flashing mode by using the touch switch;

8. Integrated design with good water proof resistance;

9. The profuction carries out ISO9001:2008 quality management system

Application

Marine, river and other waterways

Technical Parmaters

Output Mode

Flash

Peak Luminance

White

16.0cd

Red

12.0cd

Yellow

13.0cd

Green

12.0cd

Blue

7.2cd

Visual Range

3nautical miles

Horizontal Output

360¡ã

LED Number

16Pcs

Working

Minimum Autonomous Time

140hours

Latitude Range

55¡ãS to 55¡ãN

Optical Threshold

30/100 Lux

Service Life

Up to 100,000 hours

Solar Panels

Type

Monocrystalline Silicon

Max. Power

1.5w

Conversation Rate

16%

Battery

Type

Nickel Metal Hydride Battery (Adjustable)

Capacity

5.0Ah

Structure

Lens Material

Polycarbonate

Lens Color for Option

Red, Green, Blue, Yellow, White

Installation Mode for Option

Screw or Magnet

Weight

0.9kg

Working Enviroment

Temperature Range

-40¡æ to +80¡æ

Waterproof and Dust proof Level

IP67

Certificate and Patents

Quality Certificate

ISO9001:2008

CE Authentication

CTR090817073E

Patents

0222444.1 and 200430015589.3


Solar Powered Navigation Warning Light

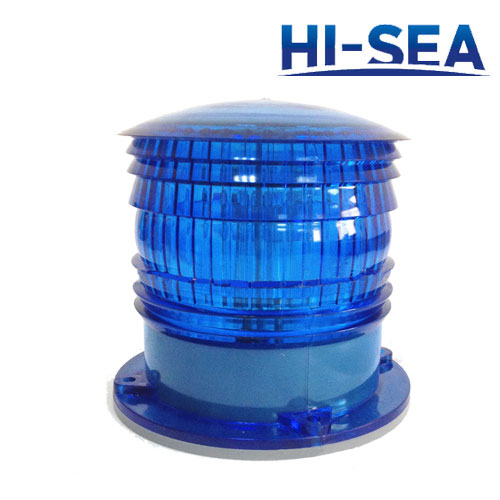

Blue Color Solar Powered Navigation Warning Light

Solar Powered Navigation Warning Light

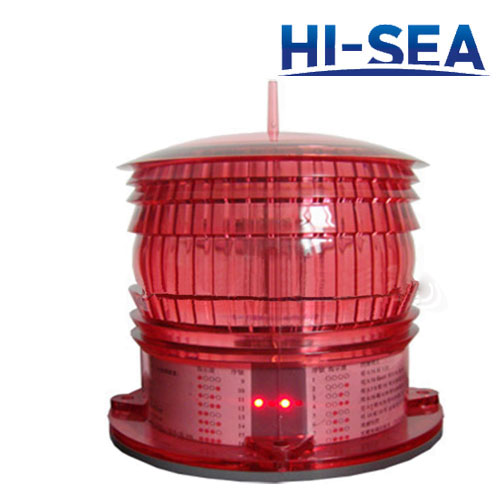

Red Color Solar Powered Navigation Warning Light
