Intelligent Cold Light Source Beacon Lighting

[Search Related Products]

Intelligent Cold Light Source Beacon Lighting

Technical Parameter

1. Model: HS-L150A

2. Working Voltage: 12V(10V~30V)

3. Daylight Switch: 300Lux+50Lux

4. Character: IALA256 types

5. Optical/Electric Conversion Efficiency: £¾15cd/W

6. Dark Current: £¼3mA

7. Divergence Angle: 8¡ã(in accordance with IALA Standard)

8. Horizontal Distribution Uniformity: £¾85%

9. Communication Serial Port: RS232/RS485 (optional)

10. Positional Mode: GPS Positioning (optional)

11. Synchronization Mode: Wired/Wireless (optional)

12. Effective Visual Range: Max. 6.1 nm (T=0.74,¡¯Brightness¡¯=0.5s)

13. Lens Materials: UV Resistant Organic Glass

14. Base Material: Marine Grade Alluminum Alloy

15. Working Temperature: -30¡æ~+70¡æ

16. Relative Humidity: 100% (condensation)

17. Protection Level: IP68

Application

HS-SL150A synchoronous flash LED marine lantern can be widely used in channels, airport runway, naval training channel and shooting situations etc.

Customized Service
We can supply both standard products and customized products according to your special requirements to meet your different needs.

Intelligent Cold Light Source Beacon Lighting

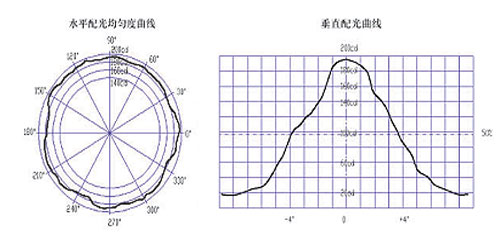

Horizontal Distribution Uniformity Curve and Vertical Distribution Curve

Flash Light Intensity Table

Color

Power

EFT,Candela vs Contact Closure Time

FIXED

0.1SEC

0.2SEC

0.3SEC

0.4SEC

0.5SEC

0.6SEC

0.7SEC

0.8SEC

0.9SEC

1.0SEC

1.1SEC

1.2SEC

Red Light

12V0.35A

75

25

37

45

50

53

56

58

60

61

62

63

64

12V0.7A

150

50

75

90

100

107

112

116

120

122

125

126

128

12V1.05A

225

75

112

135

150

160

168

175

180

184

187

190

192

Green Light

12V0.46A

80

26

40

48

53

57

60

62

64

65

66

67

68

12V0.92A

160

53

80

96

106

114

120

124

128

130

133

135

137

12V1.38A

240

80

120

144

160

171

180

186

192

196

200

203

205
