Solar Intelligent Navigation Signal Light
[Search Related Products]
Solar Intelligent Navigation Signal Light
This solar intelligent navigation signal light is composed of 120mm long-range Fresnel lens, micro-controller, high brightness LED lamp, physical silicon solar battery and full sealed non-maintenance battery. The lampshade is made of waterproof and anti-aging polypropylene acid ester (PC material). The outer shell of this lamp is made of high quality stainless steel plate and has the characteristics of corrosion resistance. The lamp body is also provided with the function of preventing the bird excrement and has the features of exquisite material, advanced circuit and reasonable structure.
This light¡¯s circuit adopts the low energy consumption and constant current design, having no impact on the LED though the voltage changes. The construction of the solar obstacle lamp is convenient. It is particularly suitable for the places where is lack of power and requires explosion-proof function. This light is more applicable in the maritime navigation aid to ensure that when the buoy floats on the surface of the ocean on at least one side facing the sun and to greatly increase the power generation efficiency of solar panels.
This product is equipped with automatic light control switch (in the daytime automatically shut off; automatically turn on at night ), having the advantages of energy saving, long life time, environmental protection and so on.
Product Specifications
Light Index |
|
Light Source |
90 pieces of Super Bright LED Lamp Beads |
Light Source Color |
Red, Green, White, Yellow, Blue |
Light Intensity |
2000cd |
Horizontal Angle |
360¡ã |
Vertical Angle |
15¡ã |
Flashing Rate |
298 including regular lighting (user-adjustable) |
LED Lifespan |
£¾100,000hours |
Power Index |
|
Rated Voltage |
DC 12V |
Rated Power |
6W |
Solar Index |
|
Solar Panel Type |
Poly-silicon |
Solar Power Output |
5W*4 |
Operating System |
Microprocessor Control |
Power Supply Index |
|
Battery Type |
High Quality Maintenance Free Battery |
Battery Capacity |
24Ah |
Rated Voltage |
DC 12V |
Continuous Overcast and Rainy Days |
Flashlight: £¾40days (14h every day 12.5% cycle period) Regular Lighting: £¾10days |
Lamp Body Technology Index |
|
Pedestal Material |
Stainless Steel |
Lampshade Material |
UV Resistant Polycarbonate |
Lampshade Diameter |
120mm |
Installation Size |
Small Holes of 4*12mm distributed The Pitch Diameter 80mm |
Lamp External Size |
500m*640mm |
Lamp Weight |
16kg |
Environment Technology Index |
|
Humidity |
0-100% |
Protection Degree |
IP65 |
Wind Load |
160km/h |
Ambient Temperature |
-40¡ã- 70¡ã |
Application |
Tower, chimneys and other high-rise buildings or sea indicator light |
Certificate |
CCS, CE |

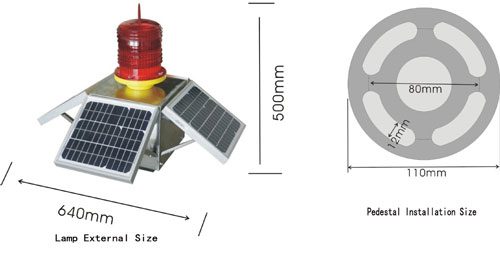

Dimension of Solar Intelligent Navigation Light
