LED Navigation Mark Light
1. Nominal light range reaches 18nautical miles;
2. Light intensity of fixed light reaches 50000cd;
3. When there is built-in GPS synchronization module, it can achieve multi-lamp wireless synchronous flash;
4. When there is built-in GSM/VHF communication module(RTU), it can be used as remote monitoring terminal
Technical Parameters
Model |
HS-L780A |
Working Voltage |
12V DC |
Daylight Switch |
300Lux+50Lux |
Characteristics of Light |
IALA256 |
Power Consumption |
£¼900W(when lamp is bright) |
Divergence Angle |
2.5¡ã(in accordance with IALA standard) |
Level Distribution Uniformity |
£¾90% |
Communication Serial Port |
RS232/RS485 |
Light Color |
Red, Green, White (optional) |
Lens Material |
Anti UV organic glass |
Chassis Material |
Marine grade alluminum alloy |
Working Temperature |
-30¡æ~+70¡æ |
Relative Humidity |
100%(condensation) |
Protection Grade |
IP56 |
Cooling Mode |
Air cooling |

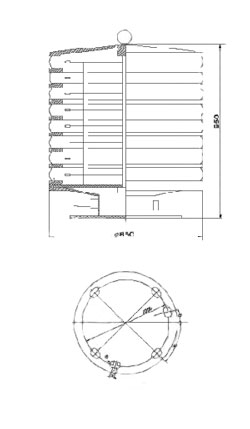

Drawing of LED Navigation Mark Light
