304 Stainless Steel Pulley Block
[Search Related Products]

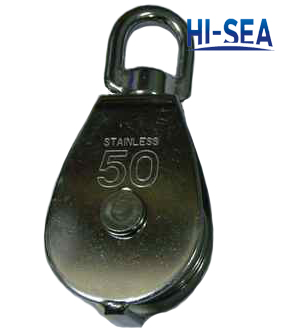

304 Stainless Steel Pulley Block
304 stainless steel pulley block is made by high polished stainless steel. Every procedure of it are controlled strictly to make sure the quality of swivels before delivery. We never allow bad goods flow to the maket and ensure to supply our custumers the high quality and security products.
Product Details:
1. Item: 304 stainless steel pulley block
2. Material: stainless steel
3. Technology: Drop forged
4. Surface: Polished
5. WLL: 35kg-1500kg
6. Usage: Lifting
7. Size: 15mm-100mm
8. Special specifications and marks can be made according to customers requirement
Specification:
Item |
WLL(kg) |
Weight(kg) |
A(mm) |
B(mm) |
C(mm) |
M15 |
35 |
0.04 |
15 |
6 |
60 |
M20 |
75 |
0.06 |
20 |
8 |
73 |
M25 |
150 |
0.12 |
25 |
11 |
85 |
M32 |
250 |
0.17 |
32 |
12 |
95 |
M50 |
400 |
0.35 |
50 |
14 |
127 |
M75 |
800 |
0.85 |
75 |
15 |
165 |
M100 |
1500 |
1.46 |
100 |
18 |
200 |

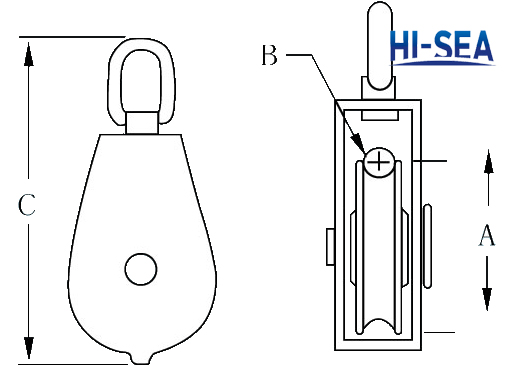

Sketch of the 304 stainless steel pulley block
304 Stainless Steel Pulley Block
