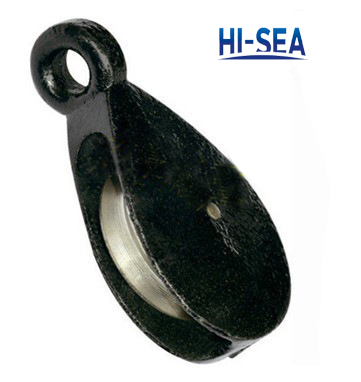

Galvanized Single Sheave Pulley

Galvanized Single Sheave Pulley

Galvanized single sheave pulley is made by high quality carbon steel with hot dip galvanizing on the surface. It is a portable lifting tools, which is easily to be operated for hoisting. Besides, they can serve in many circumstances. And Special specification and marks can be made according to customers requirement.

Product Details:

1. Item: Galvanized single sheave pulley

2. Material: Steel

3. Technology: Drop forged

4. Surface: Galvanized

5. Braking load is 4 times of working load limited

6. Usage: Lifting

7. Size: 1/2 inch-3 inch

8. Special specifications and marks can be made according to customers requirement

Specification:

Sheave Dia.(in)	Rope Dia.(in)	Weight(lbs)
1/2	5/32	0.05
3/4	3/16	0.1
1	1/4	0.12
1 1/4	5/16	0.19
1 1/2	5/16	0.32
2	7/16	0.57
2 1/2	1/2	0.98
3	5/8	1.38
