Marine Snatch Guide Block

Marine Snatch Guide Block

Marine snatch guide block can change the stress direction of the tracted wire rope for many times, and lifting, moving objects. Especially the pulley block cooperating with winch, mast and other hoisting machinery is widely used in construction and installation work.

Product Details:

1. Item: Marine snatch guide block

2. Type: Snatch block

3. Material: Steel

4. Technology: Drop forged

5. Surface: Power coated or galvanized

6. WLL: 3T-5T

7. Braking load is 4 times of working load limited

8. Usage: Lifting

9. Size: 18mm-22mm

10. Special specifications and marks can be made according to customers requirement

Specification:

Wire Rope Dia.(mm)

S.W.L(T)

N.W.(kg)

A(mm)

B(mm)

C(mm)

18/20

3

10

413

140

84

20/22

5

12

437

162

89

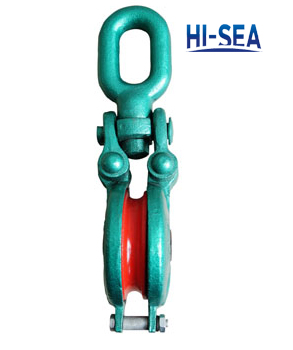

Marine Snatch Guide Block

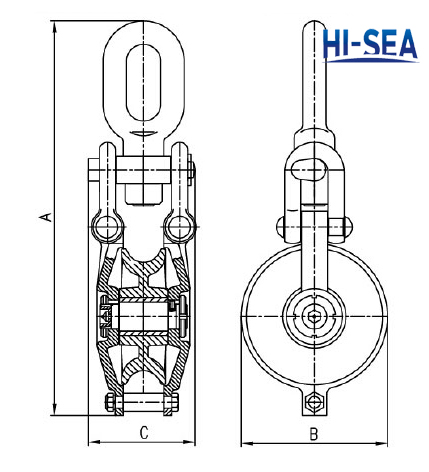

Sketch of the marine snatch guide block
