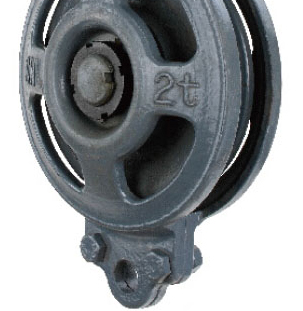

Marine Wire Rope Pulley Block
Marine wire rope pulley block is a kind of important lifting tool used in ship. To meet the increasing demands of clients, we have manufacture a variety of pulley block. All the procedures from raw material purchase to delivery will be strictly examed. The advanced technical design crafts and equipments are completely adopted.
Product Details:
1. Item: Marine wire rope pulley block
2. Material: carbon steel
3. Technology: Drop forged
4. Surface: Galvanized or zinc plated
5. WLL: 5T-30T
6. Braking load is 4 times of working load limited
7. Usage: Lifting
8. Size: 50-196mm
9. Special specifications and marks can be made according to customers requirement
Specification:
Dia.of wire rope(mm) |
WLL(T) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
F(mm) |
20/24 |
5 |
800 |
355 |
156 |
190 |
92 |
50 |
24/26 |
10 |
950 |
410 |
185 |
400 |
148 |
63 |
26/28 |
16 |
1050 |
460 |
200 |
500 |
155 |
75 |
26/28 |
20 |
1100 |
460 |
215 |
500 |
160 |
80 |
26/28 |
25 |
1125 |
460 |
310 |
500 |
160 |
160 |
26/28 |
30 |
1175 |
460 |
330 |
500 |
196 |
196 |
Sketch of the marine wire rope pulley block
