Light Type Snatch Block with Hook

[Search Related Products]

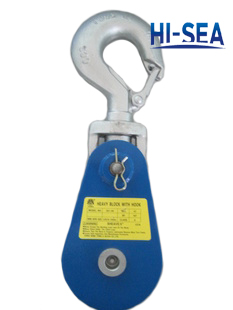

Light Type Snatch Block with Hook

Light Type Snatch Block with Hook

Light type snatch block with hook is made by high quality carbon steel with galvanized on the surface. It has the advantages of small volume, light weight and high strength. It is a kind of important hoisting tool, which has simple structure and is easy to use.

Product Details:

1. Item: Light type snatch block with hook

2. Type: European type

3. Material: carbon steel

4. Technology: Drop forged

5. Surface: Painted or galvanized

6. WLL: 2T-15T

7. Braking load is 4 times of working load limited

8. Usage: Lifting

9. Size: 3Ħħ-18Ħħ

10. Special specifications and marks can be made according to customers requirement

Specification:

Sheave Dia.(in)

WLL(T)

Rope Dia.(in)

Weight(lbs)

3

2

3/8

4.97

4 1/2

4

1/2

12.67

6

8

3/4

26.4

8

8

3/4

34.76

10

8

3/4

41.8

12

8

3/4

48.4

14

8

3/4

55

16

15

7/8

129.8

18

15

1

151.8

Light Type Snatch Block with Hook

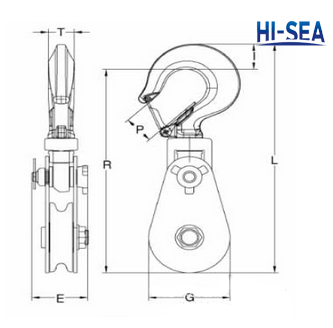

sketch of the light type snatch block with hook

Light Type Snatch Block with Hook

Light Type Snatch Blook with Hook
