Marine Wire Rope Snatch Block
Marine wire rope snatch blcok is a common used lifting equipment in marine.The most outstanding advantage of it is the solid and safety structure. So, to be on the safe side, it is recommemded that the marine wire rope pulley block should be chosen.
Product Details:
1. Item: Marine wire rope pulley block
2. Material: Steel
3. Technology: Drop forged
4. Surface: Power coated or galvanized
5. WLL: 0.5T-5T
6. Braking load is 4 times of working load limited
7. Usage: Lifting
8. Size: 12mm-28mm
9. Special specifications and marks can be made according to customers requirement
Specification:
Type |
Sheave Dia.(mm) |
S.W.L(T) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
Single Sheave |
75 |
0.5 |
178 |
85 |
26 |
12 |
100 |
1 |
235 |
121 |
34 |
16 |
|
125 |
1.5 |
305 |
145 |
38 |
18 |
|
150 |
2 |
350 |
180 |
41 |
22 |
|
200 |
4 |
425 |
225 |
46 |
28 |
|
250 |
5 |
495 |
275 |
60 |
28 |
|
Double Sheave |
75 |
0.5 |
178 |
85 |
50 |
12 |
100 |
1 |
235 |
121 |
61 |
16 |
|
125 |
1.5 |
305 |
145 |
73 |
18 |
|
150 |
2 |
350 |
180 |
83 |
22 |
|
200 |
4 |
425 |
225 |
93 |
28 |
|
250 |
5 |
495 |
275 |
115 |
28 |

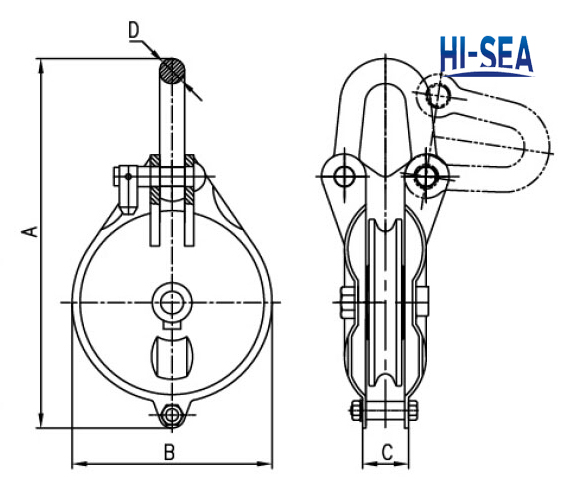

Sketch of the marine wire rope snatch block
