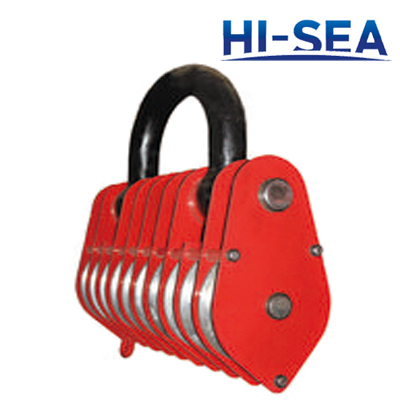

Heavy Duty 10 Wheels Pulley Block

Heavy Duty 10 Wheels Pulley Block

Heavy duty 10 wheels pulley block can hang in various crane, or installed in fixed on the range, match with hand in composition, such as the complete hoisting machinery. It can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on.

Product Details:

1. Item: Heavy duty 10 wheels pulley block

2. Material: Cast iron

3. Technology: Drop forged

4. Surface: Power coated or galvanized

5. WLL: 200T-320T

6. Braking load is 4 times of working load limited

7. Usage: Lifting

8. Size: 56mm-75mm

9. Special specifications and marks can be made according to customers requirement

Specification:

Rated Load(T)

Weight(kg)

Rope Dia.(mm)

H(mm)

B(mm)

L(mm)

200

1552

31

1630

452

1275

250

2033

34

1795

514

1432

320

2974

40

2015

576

1585

Heavy Duty 10 Wheels Pulley Block

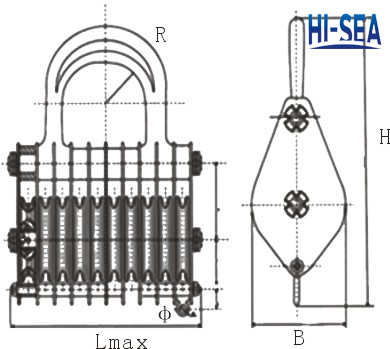

Sketch of the heavy duty 10 wheels pulley block

Heavy Duty 10 Wheels Pulley Block

Heavy Duty 10 Wheels Pulley Block
