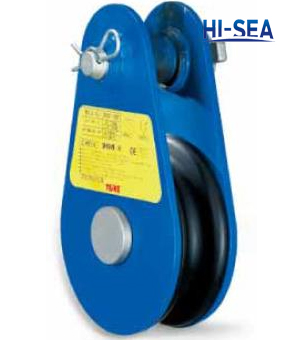

Light Type Snatch Block with Tail Board
[Search Related Products]Heavy Type Snatch Block with Tail Board
Light type snatch block with tail board can change the stress direction of the tracted wire rope for many times, and lifting, moving objects. Besides, they can serve in many circumstances. And Special specification and marks can be made according to customers requirement.
Product Details:
1. Item: Light type snatch block with tail board
2. Type: European type
3. Material: carbon steel
4. Technology: Drop forged
5. Surface: Painted or galvanized
6. WLL: 2T-8T
7. Braking load is 4 times of working load limited
8. Usage: Lifting
9. Size: 3Ħħ-12Ħħ
10. Special specifications and marks can be made according to customers requirement
Specification:
Sheave Dia.(in) |
WLL(T) |
Rope Dia.(in) |
Weight(lbs) |
3 |
2 |
3/8 |
1.4 |
4 1/2 |
4 |
1/2 |
3.5 |
6 |
8 |
3/4 |
7.1 |
8 |
8 |
3/4 |
10.9 |
10 |
8 |
3/4 |
16 |
12 |
8 |
3/4 |
25 |

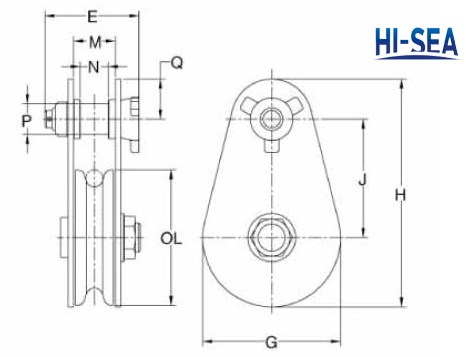

Sketch of the light type snatch block with tail board
Light Type Snatch Block with Tail Block
