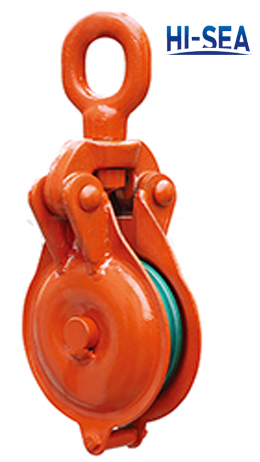

Single Sheave Marine Snatch Block
Single sheave marine snatch block is used in a variety of ways to lift loads, apply forces and to transmit power. It has the advantages of small volume, light weight and high strength. It can be widely used in mine, large factory, shipping, metallurgy, bridge construction and so on.
Product Details:
1. Item: Single sheave marine snatch block
2. Type: Snatch block
3. Material: Steel
4. Technology: Drop forged
5. Surface: Power coated or galvanized
6. WLL: 0.5T-5T
7. Braking load is 4 times of working load limited
8. Usage: Lifting
9. Size: 12mm-28mm
10. Special specifications and marks can be made according to customers requirement
Specification:
Wire Rope Dia.(mm) |
Sheave Dia.(mm) |
S.W.L(T) |
N.W.(mm) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
8 |
75 |
0.5 |
1.5 |
230 |
85 |
26 |
12 |
8 |
100 |
1 |
2.4 |
285 |
121 |
34 |
16 |
9 |
125 |
1.5 |
4.2 |
346 |
145 |
38 |
18 |
12 |
150 |
2 |
6.4 |
419 |
180 |
41 |
22 |
16 |
200 |
4 |
12.5 |
517 |
225 |
46 |
28 |
22 |
250 |
5 |
16 |
655 |
275 |
60 |
28 |

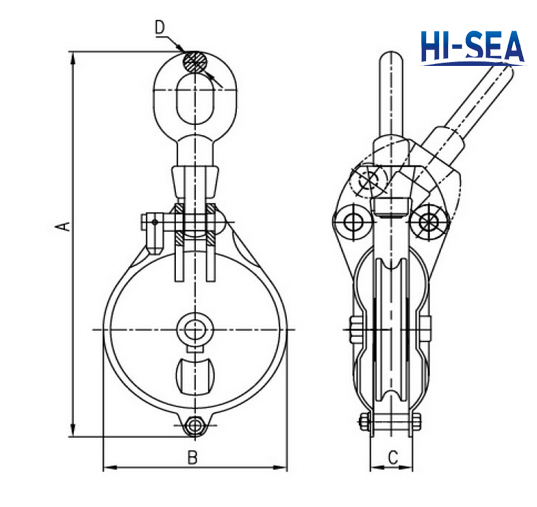

sketch of the single sheave marine snatch block
Single Sheave Marine Snatch Block
