Heavy Type Snatch Block with Hook
[Search Related Products]Heavy Type Snatch Block with Hook
Heavy type snatch block with hook is made by high tensile steel. The working load limited is from 2 ton to 50 ton. The block is configurated with carbon steel pulley and grease ripple that can prolong the service life and make it convient to operate and maintenance.
Product Details:
1. Item: Heavy type snatch block with hook
2. Type: Snatch block
3. Material: Steel
4. Technology: Drop forged
5. Surface: Power coated or galvanized
6. WLL: 2T-50T
7. Braking load is 4 times of working load limited
8. Usage: Lifting
9. Size: 70mm-240mm
10. Special specifications and marks can be made according to customers requirement
Specification:
S.W.L(T) |
Sheave Dia.(mm) |
Wire Rope Dia.(mm) |
A1(mm) |
B(mm) |
C(mm) |
2 |
75 |
7/9 |
292 |
82 |
70 |
4 |
115 |
10/12 |
358 |
120 |
70 |
4 |
150 |
16/18 |
412 |
160 |
70 |
8 |
150 |
20/22 |
498 |
160 |
93 |
8 |
200 |
20/22 |
549 |
210 |
93 |
15 |
200 |
22/24 |
672 |
230 |
102 |
10 |
250 |
24/26 |
695 |
260 |
115 |
12 |
250 |
24/26 |
701 |
260 |
115 |
12 |
300 |
24/26 |
797 |
310 |
133 |
15 |
300 |
26/28 |
800 |
310 |
133 |
22 |
355 |
28/32 |
960 |
365 |
140 |
22 |
400 |
28/32 |
1027 |
415 |
140 |
30 |
400 |
32/35 |
1085 |
415 |
155 |
30 |
500 |
32/35 |
1177 |
514 |
162 |
50 |
600 |
46/50 |
1445 |
625 |
240 |

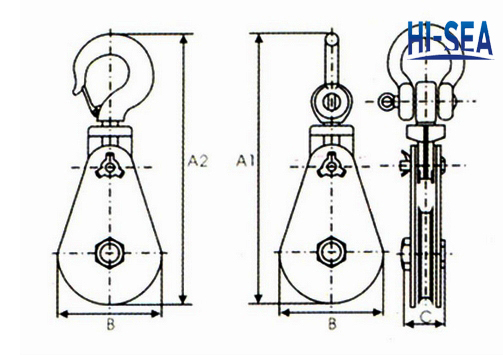

Sketch of the heavy type snatch block with hook

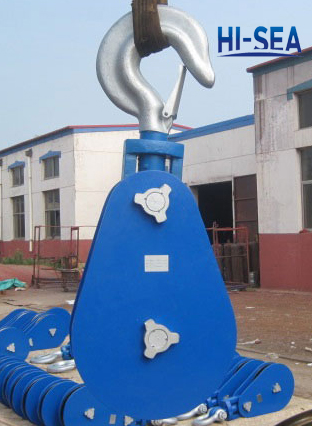

Heavy Type Snatch Block with Hook
