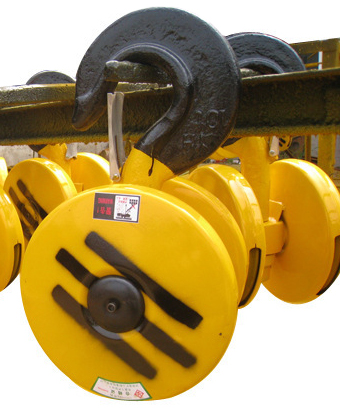

Crane Hook Block for Electric Wire Rope Hoist

Crane Hook Block for Electric Wire Rope Hoist

Crane hook block for wire rope hoist is one of the most common in hoisting machinery. The hook often be suspended on the wire rope hoist through a closed block or other components. The move part of pulley is adopted centripetal bearing. The hook is die forged from 20# steel, and it can rotate flexiblly in horizontal 360 degrees and in vertical 180 degrees.

Product Details:

1. Model: Mining pulley block

2. Material: High quality carbon steel

3. Surface: Powder Coated

4. Rated load: 0.5T-10T

5. Usage: Lifting

6. Weight: 4.6kg-35kg

7. Packaging: Gunny bag or carton then on steel pallet

8. Special specification and marks can be made according to order quantity

Specifications:

Code

Rated Load

Hook Length

Axial Length

Outer Dia.

Inside Dia.

Weight

Wire Rope Dia.

T

mm

mm

mm

mm

kg

mm

HS-5

0.5

124

72

130

47

4.6

4.8

HS-10

1

176

76

165

62

11.5

7.4

HS-20

2

225

101

235

80

16.6

11

HS-30

3

247

107

276

90

26

13

HS-50

5

320

138

328

140

35

14
