Heavy Type Snatch Block with Shackle

Heavy Type Snatch Block with Shackle

Heavy type snatch block with shackle is a kind of common used lifting equipment. It is configurated with carbon steel pulley and grease ripple that can prolong the service life and make it convient to operate and maintenance. The shackle of it adopts better corrosion resistance and long service life product.

Product Details:

1. Item: Heavy type snatch block with shackle

2. Type: Snatch block

3. Material: Steel

4. Technology: Drop forged

5. Surface: Power coated or galvanized

6. WLL: 2T-50T

7. Braking load is 4 times of working load limited

8. Usage: Lifting

9. Size: 70mm-240mm

10. Special specifications and marks can be made according to customers requirement

Specification:

S.W.L(T)

Sheave Dia.(mm)

Wire Rope Dia.(mm)

N.W.(kg)

A1(mm)

B(mm)

C(mm)

2

75

7/9

3.8

286

82

70

4

115

10/12

6.2

345

120

70

4

150

16/18

8.3

399

160

70

8

150

20/22

14.1

475

160

93

8

200

20/22

18.7

528

210

93

15

200

22/24

33

663

230

102

10

250

24/26

34.7

679

260

115

12

250

24/26

34.7

679

260

115

12

300

24/26

54

767

310

133

15

300

26/28

55

788

310

133

22

355

28/32

109

952

365

140

22

400

28/32

118

1019

415

140

30

400

32/35

164

1126

415

155

30

500

32/35

208

1256

514

162

50

600

46/50

418

1525

625

240

Heavy Type Snatch Block with Shackle

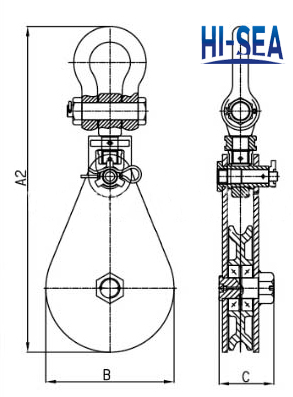

Sketch of the heavy type snatch block with shackle
