Light Type Snatch Block with Shackle

Heavy Type Snatch Block with Shackle

Light type snatch block with shackle is a wheel on an axle that is designed to support movement and change the direction of cable. It is used in a variety of ways to lift loads, apply forces and to transmit power. It has the advantages of small volume, light weight and high strength. Besides, they can serve in many circumstances.

Product Details:

1. Item: Light type snatch block with shackle

2. Type: European type

3. Material: carbon steel

4. Technology: Drop forged

5. Surface: Painted or galvanized

6. WLL: 2. T-18T

7. Braking load is 4 times of working load limited

8. Usage: Lifting

9. Size: 3Ħħ-18Ħħ

10. Special specifications and marks can be made according to customers requirement

Specification:

Sheave Dia.(in)

WLL(T)

Rope Dia.(in)

Weight(lbs)

3

2

3/8

3.08

4 1/2

4

1/2

13.77

6

8

3/4

27.54

8

8

3/4

35.86

10

8

3/4

42.9

12

8

3/4

49.57

14

8

3/4

56.17

16

15

7/8

136.4

18

15

1

158.4

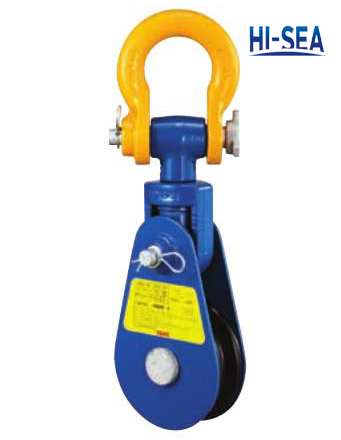

Light Type Snatch Block with Shackle

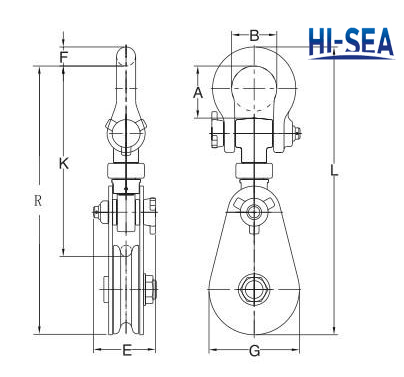

Sketch of the light type snatch block with shackle

Light Type Snatch Block with Shackle

Light Type Snatch Block with Shackle
