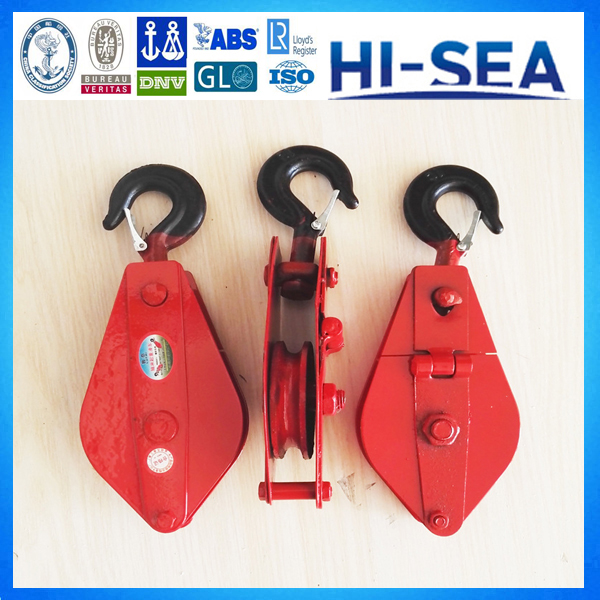

Single Sheave Lifting Snatch Block
[Search Related Products]
Single sheave lifting snatch block is a wheel on an axle that is designed to support movement and change the direction of cable. It can change the stress direction of the tracted wire rope for many times, and lifting, moving objects.
Product Details:
1. Item: Single sheave lifting snatch block
2. Type: Snatch block
3. Material: Steel
4. Technology: Drop forged
5. Surface: Power coated or galvanized
6. WLL: 1T-32T
7. Braking load is 4 times of working load limited
8. Usage: Lifting
9. Size: 37.5mm-140mm
10. Special specifications and marks can be made according to customers requirement
Specification:
Weight |
WLL |
H |
H1 |
B |
L |
D |
Rope Dia. |
kg |
T |
mm |
mm |
mm |
mm |
mm |
mm |
4.4 |
1 |
310 |
285 |
116 |
70.5 |
37.5 |
7.7 |
4.03 |
1 |
310 |
285 |
116 |
70.5 |
37.5 |
7.7 |
3.6 |
1 |
310 |
285 |
116 |
70.5 |
37.5 |
7.7 |
3.23 |
1 |
310 |
285 |
116 |
70.5 |
37.5 |
7.7 |
7.98 |
2 |
405 |
370 |
152 |
88 |
45 |
11 |
7.4 |
2 |
405 |
370 |
152 |
88 |
45 |
11 |
7.41 |
2 |
405 |
370 |
152 |
88 |
45 |
11 |
6.8 |
2 |
405 |
370 |
152 |
88 |
45 |
11 |
12.91 |
3.2 |
470 |
440 |
176 |
101 |
50 |
12.5 |
12.16 |
3.2 |
470 |
440 |
176 |
101 |
50 |
12.5 |
12.22 |
3.2 |
470 |
440 |
176 |
101 |
50 |
12.5 |
11.48 |
3.2 |
470 |
440 |
176 |
101 |
50 |
12.5 |
23.79 |
5 |
570 |
540 |
212 |
117 |
60 |
15.5 |
22.82 |
5 |
570 |
540 |
212 |
117 |
60 |
15.5 |
19.85 |
5 |
570 |
540 |
212 |
117 |
60 |
15.5 |
18.88 |
5 |
570 |
540 |
212 |
117 |
60 |
15.5 |
41 |
8 |
730 |
685 |
280 |
141 |
75 |
23 |
38.93 |
8 |
730 |
685 |
280 |
141 |
75 |
23 |
36.4 |
8 |
730 |
685 |
280 |
141 |
75 |
23 |
34.33 |
8 |
730 |
685 |
280 |
141 |
75 |
23 |
62.98 |
10 |
810 |
775 |
316 |
159 |
85 |
24.5 |
60.92 |
10 |
810 |
775 |
316 |
159 |
85 |
24.5 |
54.1 |
10 |
810 |
775 |
316 |
159 |
85 |
24.5 |
52.04 |
10 |
810 |
775 |
316 |
159 |
85 |
24.5 |
113.5 |
16 |
1010 |
960 |
406 |
185 |
106 |
28 |
107.16 |
16 |
1010 |
960 |
406 |
185 |
106 |
28 |
162.2 |
16 |
1150 |
1065 |
452 |
193 |
118 |
31 |
152.15 |
16 |
1150 |
1065 |
452 |
193 |
118 |
31 |
300 |
32 |
1480 |
1400 |
580 |
240 |
140 |
35 |
290 |
32 |
1480 |
1400 |
580 |
240 |
140 |
35 |
Sketch of the single sheave lifting snatch block
Single Sheave Lifting Snatch Block
