6 Wheels Wire Rope Pulley Block

6 Wheels Wire Rope Pulley Block

6 wheels wire rope pulley block has excellent wear resistance, impact resistance and reliable toughness. The block is configurated with carbon steel pulley and grease ripple that can prolong the service life and make it convient to operate and maintenance.

Product Details:

1. Item: 6 wheels wire rope pulley block

2. Material: Cast iron

3. Technology: Drop forged

4. Surface: Power coated or galvanized

5. WLL: 32T-100T

6. Braking load is 4 times of working load limited

7. Usage: Lifting

8. Size: 32mm-56mm

9. Special specifications and marks can be made according to customers requirement

Specification:

Rated Load(T)

Weight(kg)

Rope Dia.(mm)

H(mm)

B(mm)

L(mm)

32

122.3

17

760

236

430

50

277.4

23

980

316

540

80

507.3

28

1190

406

625

100

691.3

31

1325

452

680

6 Wheels Wire Rope Pulley Block

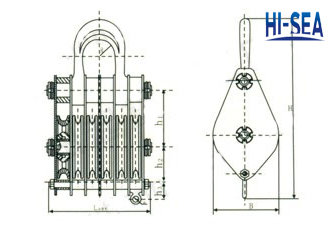

Sketch of the 6 wheels wire rope pulley block

6 Wheels Wire Rope Pulley Block

6 Wheels Wire Rope Pulley Block
