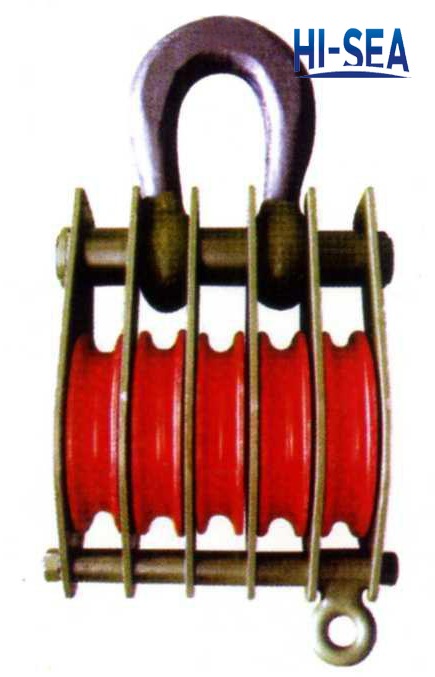

5 Wheels Large Pulley Block

5 Wheels Large Pulley Block

5 wheels large pulley block is a kind of important hoisting tool, which has simple structure and is easy to use. The working load limited is from 20 ton to 80 ton. Because of its solid and safety structure, it has bigger bearing capacity than normal pulley block.

Product Details:

1. Material: Cast iron

2. Technology: Drop forged

3. Surface: Power coated or galvanized

4. WLL: 20T-80T

5. Braking load is 4 times of working load limited

6. Usage: Lifting

7. Size: 28mm-56mm

8. Special specifications and marks can be made according to customers requirement

Specification:

Rated Load(T)	Weight(kg)	Rope Dia.(mm)	H(mm)	B(mm)	L(mm)
20	90.66	15.5	650	212	350
32	303	20	815	280	420
50	303	23	997	364	485
80	516.5	31	1210	452	580

Sketch of the 5 wheels large pulley block
