Forged Heavy Crane Hook Block
[Search Related Products]
Forged Heavy Crane Hook Block
Crane hook block is one of the most common lifting tools in hoisting machinery. The hook often be suspended on the wire rope hoist through a closed block or other components. According to its shape, it can be devided into single hook and double hook. The single hook block is simple to manufacture and is easy to use. It is often used in the situation that the lifting weight is under 80 tons.
Product Details:
1. Model: Crane single hook block
2. Material: High quality carbon steel
3. Surface: Powder Coated
4. Rated load: 3.2T-100T
5. Usage: Lifting
6. Weight: 70kg-4964kg
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity
Specification:
Code |
Type |
Rated Load |
Pulley Dia. |
Weight |
ton |
mm |
kg |
||
HS-03 |
Single |
3.2 |
300/350 |
70 |
HS-05 |
5 |
430/450 |
128 |
|
HS-10 |
10 |
430/450 |
230 |
|
HS-16 |
16 |
565 |
377 |
|
HS-20 |
20 |
565 |
489 |
|
HS-32 |
32 |
680 |
835 |
|
HS-50 |
50 |
785 |
1346 |
|
HS-75 |
75 |
920 |
2500 |
|
HS-80 |
80 |
920 |
3265 |
|
HS-100 |
100 |
920/1120 |
4964 |

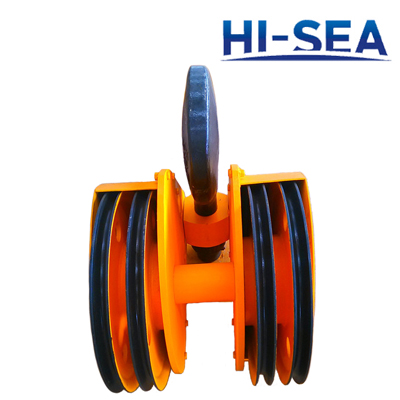

Forged Heavy Crane Hook Block-A

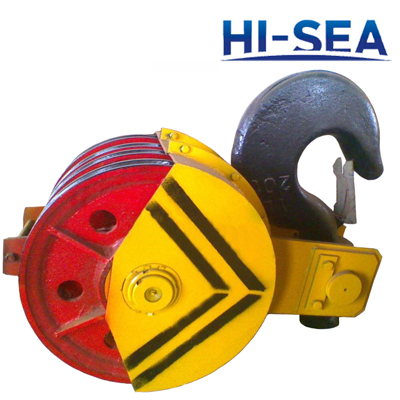

Forged Heavy Crane Hook Block-B
