Composite Glass Wool Acoustic Wall Panel

[Search Related Products]

Composite Glass Wool Acoustic Wall Panel

Composite Glass Wool Acoustic Wall Panel

This product is one of marine decorative materials. It is used as the ship wall paneling. The surface of this marine wall panel l is galvanized steel sheet or PVC/PET film laminated, and the core material is glass wool. Our product is manufactured in accordance with the ISO9000 standards. It is approved by ABS, CCS, BV, DNV, EC, GL, KR, NK, etc.

Features:

1. Fireproof class: B15, B0

2. Thickness: 50mm, 30mm, 25mm

3. Normal width: 600/550mm

4. Max. length: 3600mm

5. Light weight and perfect function

6. Customize size available

Specifications:

Model

B50C

B30C

B25C

Fire resistance rating

B-15

B-0

B-0

Surface material

Galvanized steel sheet with PVC/PET laminated film

Core material

Glass wool

Glass wool

Glass wool

Thickness

50mm

30mm

25mm

Dimension

width 600/550mm, length optional (max. 3600mm)

Weight

15kg/m2

12.9kg/m2

10.3kg/m2

Tolerances

Width: 0-1, length”Ą3, thickness: 0-1

Sound reduction

32dB(A)

31dB(A)

30dB(A)

Thermal transmittance

0.49 kcal/m2h・”ę

0.92kcal/m2h・”ę

1.01kcal/m2h・”ę

Product displaying:

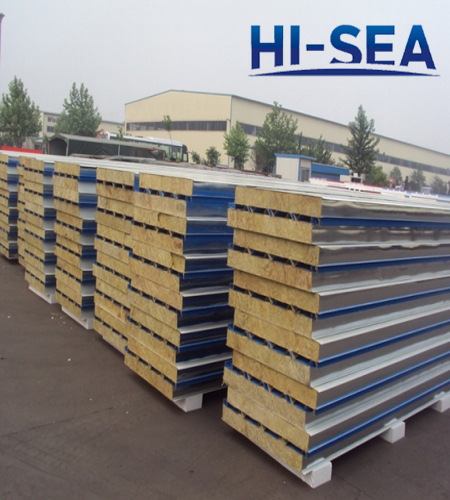

Composite Glass Wool Acoustic Wall Panel

Type C Composite Glass Wool Acoustic Wall Panel
