Marine Aluminum Sheet Composite Honeycomb Ceiling

[Search Related Products]

Marine Aluminum Sheet Composite Honeycomb Ceiling

Marine Aluminum Sheet Composite Honeycomb Ceiling

This product is composite aluminum honeycomb panel. The surface material of it is PVC/PET aluminum and the core material is aluminum cellular. This composite aluminum sheet cellular honeycomb panel is used as ceiling board in the cabins of various vessels. This aluminum honeycomb ceiling is fire resistant and the fire protecting rating is C. We can provide certificates such as CCS, BV, DNV, KR, and NK according to client¡¯s need.

Features:

1. Material: PVC/PET aluminum sheet, aluminum cellular

2. Fire protecting rating: C

3. Thickness: 30mm, 25mm, 20mm

4. Certificates: CCS, BV, DNV, LR, NK, KR, RINA, etc.

5. Customized size available

Specifications:

Model

T30A

T25A

T20A

Fire protecting rating

C

C

C

Thickness

30mm

25mm

20mm

Dimension

550/600mm width required length (max. 3600mm)

Weight

5.6kg/©O

5.4kg/©O

5.2kg/©O

Sound reduction

30dB(A)

29dB(A)

28dB(A)

Thermal transmittance

3.25 Kcal/©Oh¡¤¡æ

3.25 Kcal/©Oh¡¤¡æ

3.25 Kcal/©Oh¡¤¡æ

Tolerance

Width(-1,0), Length ¡À3, Thickness(-1,0)

Surface finish

PVC/PET film laminated aluminum sheet

Core material

Aluminum cellular

Aluminum cellular

Aluminum cellular

Product displaying:

Marine Aluminum Sheet Composite Honeycomb Ceiling

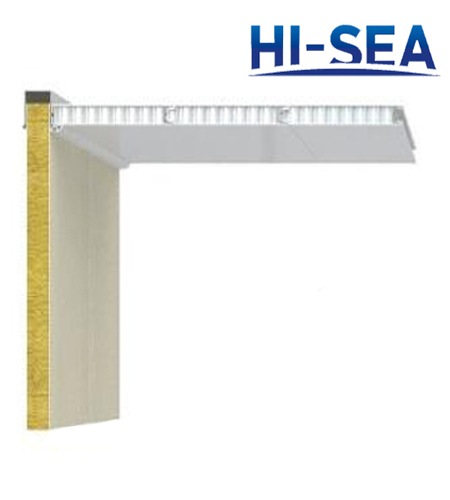

Type A Composite Aluminum Honeycomb Ceiling
