Type C Composite Rock Wool Wall Board with Cable Slot

[Search Related Products]
Type C Composite Rock Wool Wall Board with Cable Slot

Type C Composite Rock Wool Wall Board with Cable Slot

This is type C ship composite rock wool wall panel. It is designed with cable slot which makes it easy to install electric equipment. The fire resistant rating of this marine rock wool wall panel is B-15. With the fire protecting rating of B-15, this type C insulating rock wool wall panel can be used in the corridors, passenger rooms, meeting rooms, recreation rooms, and movie rooms of ships. Certificates like CCS, BV, and DNV about this type wall panel can be offered according to customer¡¯s request.

Features:

1. Ship rock wool wall panel with cable slot

2. Model: B50CD

3. Fire protecting rating: B-15

4. Thickness: 50mm

5. Width: 550mm

6. Required length, (max. 3500mm)

7. Material: PVC film or galvanized steel sheet, rock wool

8. Certificates: CCS, DNV, BV, NK, GL, etc.

Specifications:

Model

B50CD

Fire resistant rating

B-15

Sound reduction

33dB(A)

Weight

15.3kg/m2

Thermal transmittance

0.55Kcal/m2h¡¤¡ãC

Dimension

50mm( t )¡Á550mm( w )¡Álength (max.3500mm)

Tolerances

Thickness(-1, 0), Width(-1, 0), Length¡À3

Core material

Rock wool 150kg/m3

Surface finish

PVC film(150¦Ì,low flame spread) or galvanized steel sheet

Product showing:

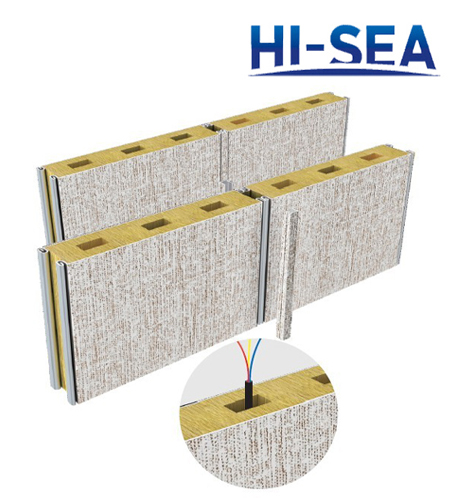

Type C Composite Rock Wool Wall Board with Cable Slot

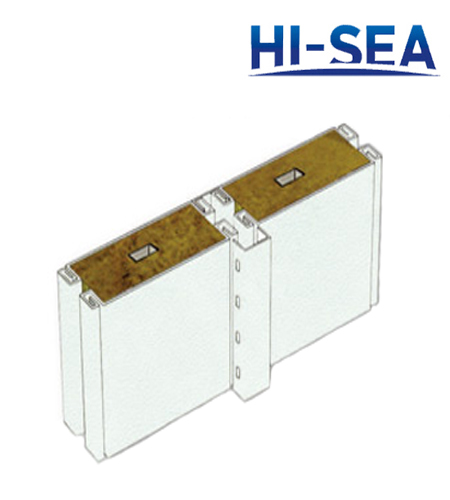

Type C Composite Rock Wool Wall Panel with Cable Slot

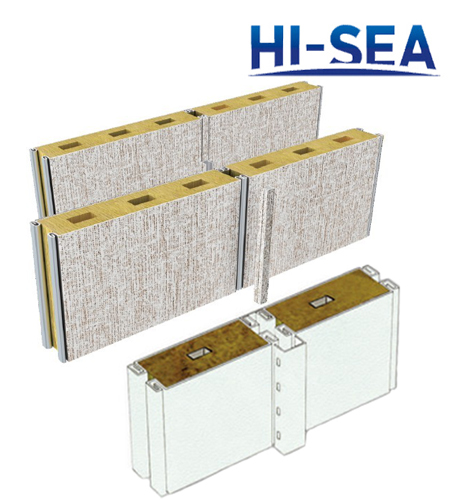

Type C Composite Rock Wool Wall Board with Cable Slot

Marine Type C Composite Rock Wool Wall Board with Cable Slot
