Type A Steel Sheet Composite Aluminum Honeycomb Wall Panel

Type A Steel Sheet Composite Aluminum Honeycomb Wall Panel

This product is made of composite aluminum honeycomb, and it is used as wall panel for various vessels. We can supply four types composite aluminum honeycomb, this one is the type A with galvanized steel sheet on the surface. The core material of it is aluminum honeycomb. This marine aluminum honeycomb wall panel is fire resistant and the fire protecting ratings are B-15, B-0, and C. To meet customer¡¯s different demand, the length of this wall panel is customized.

Features:

1. Material: PVC/PET film laminated(low-flame spread) or galvanized steel sheet, aluminum honeycomb

2. Fire proof rating: B-15, B-0, C

3. Thickness: 50mm, 30mm, 25mm, 20mm, 15mm

4. Width: 550/600mm

5. Length is customized (max. 3600mm)

6. Certificates: CCS, BV, DNV, KR, NK, RINA, etc.

Specifications:

Model

B50A

B30A

B25A

B20A

B15A

Fire proof rating

B-15

B-0

B-0

C

C

Weight

18 kg/©O

12.3 kg/©O

11.6 kg/©O

11.42 kg/©O

11.24 kg/©O

Thickness

50mm

30mm

25mm

20mm

15mm

Dimension

width 550/600mm¡Áthickness(50/30/25/20/15mm)¡Árequired length(max. 3600mm)

Sound reduction

33 dB(A)

30 dB(A)

29 dB(A)

27 dB(A)

25 dB(A)

Thermal transmittance

2.25 Kcal/©O¡¤h¡æ

3.25 Kcal/©O¡¤h¡æ

3.35 Kcal/©O¡¤h¡æ

3.35 Kcal/©O¡¤h¡æ

3.35 Kcal/©O¡¤h¡æ

Tolerances

Width(-1,0), Length ¡À3, Thickness(-1,0)

Surface finish

PVC/PET film laminated or galvanized steel sheet

Core material

Aluminum honeycomb


Product displaying:

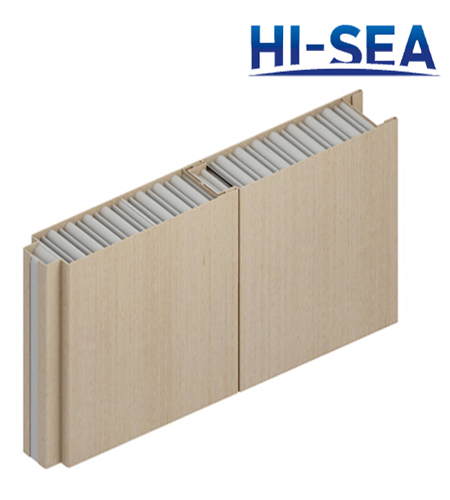

Type A Steel Sheet Composite Aluminum Honeycomb Wall Panel

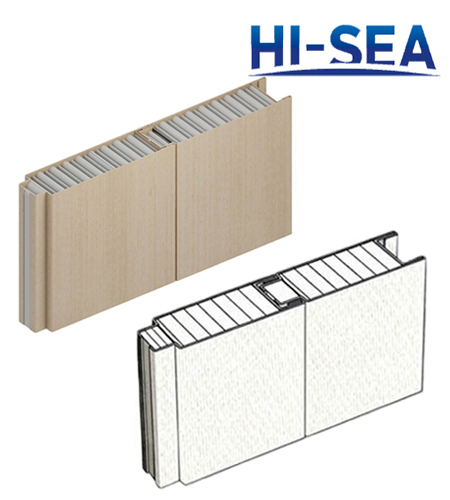

Steel Sheet Composite Aluminum Honeycomb Wall Board
