Type A Composite Rock Wool Ceiling Panel
[Search Related Products]Type A Composite Rock Wool Ceiling Panel
Composite rock wool panel is a kind marine decoration material used for cabin and deck house of various ships. We can supply many types of marine composite rock wool panels; this is the type A composite rock wool ceiling board. Our products are fire resistant. The fire proof ratings are B-15 and B0. The length of our marine ceiling board is customized, so customers can choose freely. Certificates like CCS, BV, DNV, etc. could be offered according to clients¡¯ requirement.
Features:
1. Product model: T50A, T30A, T25A, T30A(¢ò), TAXY
2. Fire proof rating: B-15, B-0
3. Thickness: 50mm, 30mm, 25mm
4. Normal width: 550mm
5. Length is customized, (max.3000mm)
6. Certificates: ABS, CCS, BV, DNV, KR, etc.
7. OEM service available
Specification: |
|||||
Model |
T50A |
T30A |
T25A |
T30A(¢ò) |
T30AXY |
Fire protecting rating |
B-15 |
B-15/B-0 |
B-0 |
B-15 |
B-15 |
Thickness |
50mm |
30mm |
25mm |
30mm |
30mm |
Dimensions |
50/30/25mm(t)¡Á550mm(w)¡Álength(max.3000mm) |
30mm( t )¡Á550mm( w )¡Álength (max.3000mm |
|||
Weight |
16.0kg/m2 |
13.5kg/m2 |
12.9kg/m2 |
14.7kg/m2 |
12.9kg/m2 |
Tolerances |
Thickness(-1, 0), Length¡À3, Width(-1, 0) |
||||
Thermal transmittance |
0.58Kcal/m2h¡ãC |
1.10Kcal/m2h¡ãC |
1.14Kcal/m2h¡ãC |
1.10Kcal/m2h¡ãC |
1.13Kcal/m2h¡ãC |
Core material |
Rock wool 150kg/m3 |
||||
Surface finish |
PVC film(150¦Ì,low flame spread) or galvanized steel sheet |
Product displaying:

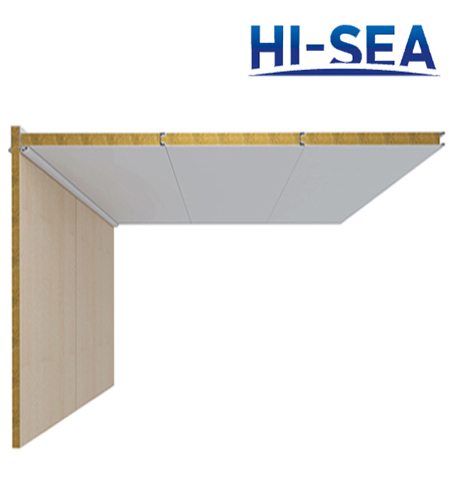

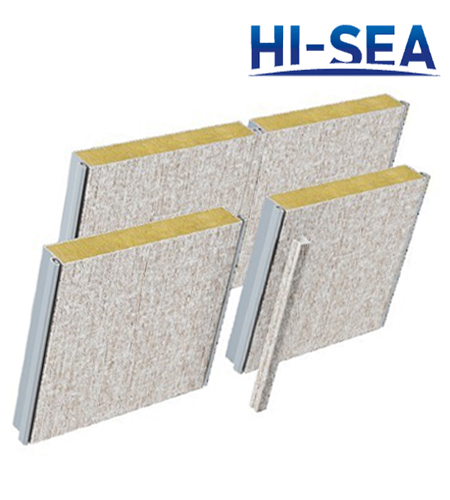

Marine Composite Rock Wool Ceiling Board
